Product Details
Product Description
Product Description

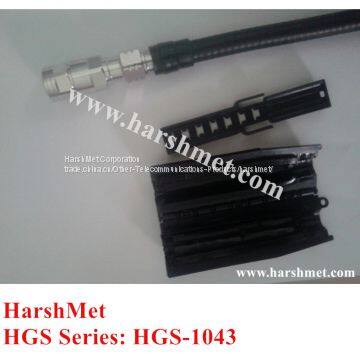

Gel Seal Weatherproofing Enlosure for Wireless Cell Site HarshSealTM HGS Series
HarshMet HarshSealTM HGS series gel seal closure is a new kind of weatherproofing solutions designed to protect RF connections at wireless communication towers, for instance, 2G, 3G or 4G, LTE cell sites where RF connections are getting denser than ever before and the traditional weatherproofing solutions, tapes and mastic are difficult to use in such crowded places. HGS series closures are re-enterable, reusable and tool-less, making it time-saving, cost-effective and installer-friendly weatherproofing solution for the mobile base stations industry. HGS closures find typical applications in covering RF connections on both antennas and RRU(Remote Radio Unit), splice in-line connections, grounding transtions etc
1. Sealing properties of the gel provide a reliable protection over a wide temperature range (-30°C/+ 80°C)
2. Wraparound and no disconnection of the connector
3. Quick and easy to install
4. Easy removable and re-usable
5. Gel material provides an effective barrier against ingress of water and other contaminant's - IP rating 68
6. No tape, no mastics or tools required for installation and removal
Specification
Part Number
| Product Description
|
HGS-12A
| Gel seal closure for 1/2" jumper cable to antenna
|
HGS-12AS
| Gel seal closure for 1/2" jumper cable to antenna
|
HGS-1278
| Gel seal closure for 1/2" jumper cable to 7/8" feeder.
|
HGS-12114
| Gel seal closure for 1/2" jumper cable to 1-1/4" feeder.
|
HGS-12158
| Gel seal closure for 1/2" jumper cable to 1-5/8" feeder.
|
HGS-78A
| Gel seal closure for 7/8" cable to antenna
|
HGS-78G
| Gel seal closure for 7/8" grounding kit
|
HGS-12TD-RRU
| Gel seal closure for 1/2" jumper to RRU
|
HGS-38TD-RRU
| Gel seal closure for 3/8" cable to RRU
|
>>
