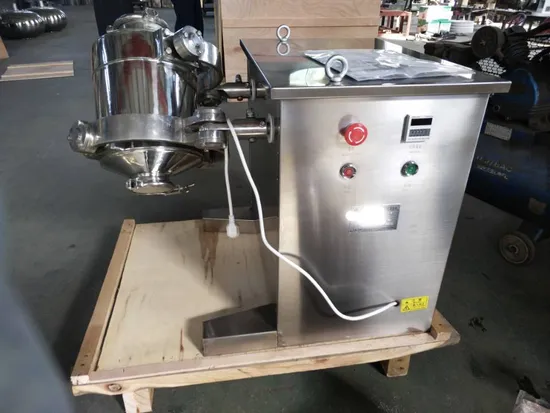

HD-5 Pharmaceutical Multi-Direction Movement Mixer

Product Description

HD Series Multi-direction Movement Mixer
Application:
This new designed mixer is widely applied in pharmaceuticals foodstuffs, chemical, industrials and light industries to mix dry powder and granulator.
Principle:
This mixer provides high quality mixing by meanings of the multi direction movements of its barrel which fast the fluidity and diffuse of the materials avoid specific gravity accumulation, due to eccentricity.
Structure:
It is mainly composed of machine set drive, system, electrical control system, multidirectional, motions mechanism mixing tank, it is more efficient than ordinary mixers with a unique barrel body, made of stainless steel, inside and outside polished, with no death-corner.
Features:
1. Even mixing, higher barrel volume utilization than that the 40% of other mixers.
2. Special designed barrel with fine inside and outside polishing materials down load by self weight no sharp corner, no materials remained, easy to wash mixing within barred no environment pollution.
3. It doesn't produce for pollution of the environment, when mixing the material into special.
Technical parameter

No.	Item	Parameter	No.	Item	Parameter
1,	Model	HD-5	5,	Volume	5L
2,	Max. Loading weight	2.5Kg/batch	6,	Max. Loading volume	4L
3,	speed	13rpm	7,	Overall dimension	720*650*950mm
4,	Motor	0.37Kw	8,	Weight	50kg

---
