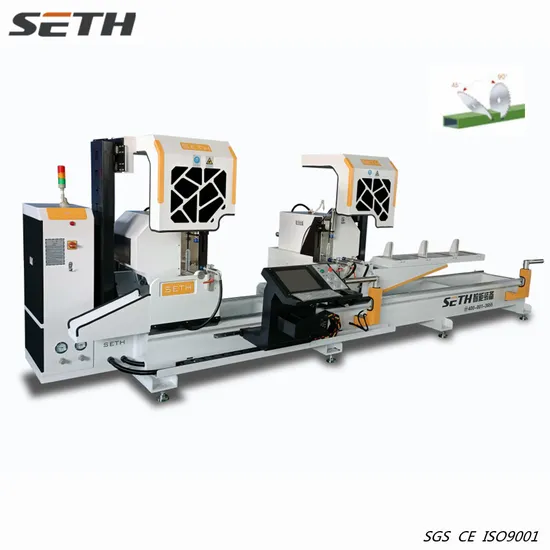

Window Machines CNC Double Head Mitre Saw Cuiing Aluminum Profile for Sale

Product Description

Product Parameters

Power	380V 50HZ
Saw head motor	2×3KW/ 2840r/min
Working pressure	0.5 ~ 0.8mpa
Air consumption	60L/min
Saw length	Max4300mm MIN420mm (8200-300)
Saw width	Max 140mm
Maximum cutting slope	45°140×220mm 90°140×300mm
Sawing Angle	90°, 45°
Feed speed	stepless speed regulation 0-3m/min
Saw blade specifications	ø500 × ø30 × 4.4× Z120
Dimensions	5800×1800×1500 mm
Weight	1650 kg
Repeat constant length accuracy	≤ 0.05mm
Profile cutting Angle tolerance	±3 '
Cutting plane flatness	≤ 0.1m
Roughness of cutting surface	Ra12.5μm

Product Description
CNC double head precision cutting saw for aluminum PVC uPVC profile cutting saw
☆ Mainly used for cutting industrial aluminum profiles, aluminum system doors and Windows,
curtain wall materials,also can be used for PVC and wood Cutting .
☆ The machine adopts numerical control .
☆ The machine adopts numerical control technology and can complete automatic positioning
cutting of different sizes of profiles.
☆ Selected high-quality aluminum carbide saw blade, outer diameter up to 500,
high wire speed,high processing accuracy.
☆ CNC transmission adopts high standard rack and pinion, high transmission accuracy,
accurate positioning, stable work.
☆ High precision spindle ensures stable rotation of saw blade and
effectively improves surface quality of workpiece.
☆ Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.
☆ The use of micro spray cooling device.
☆ Automatic head rotation, bidirectional positioning, clamping, single head can work independently.
Automatic opening and closing protective cover,make operation safer.
☆ The saw blade automatically swings into 45° and 90° angles, automatically opens and
closes the protective cover,so that the operation is safer.
☆ Saw blade from back to front, saw cutting profile is more safe and reliable, and saw cutting height
and saw cutting width are very
large.echnology and can complete automatic positioning cutting of different sizes of profiles.
☆ Selected high-quality aluminum carbide saw blade, outer diameter up to 500, high wire speed,
high processing accuracy.
☆ CNC transmission adopts high standard rack and pinion, high transmission accuracy,
stable work,accurate positioning,
☆ High precision spindle ensures stable rotation of saw blade and effectively improves
surface quality of workpiece.
☆Air-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.
☆ The use of micro spray cooling device.
☆ Automatic head rotation, bidirectional positioning, clamping, single head can work independently.
Automatic openingand closing protective cover,make operation safer.
☆ The saw blade automatically swings into 45° and 90° angles, automatically opens and closes the protective cover,
so that the operation is safer.
☆ Saw blade from back to front, saw cutting profile is more safe and reliable, and saw cutting height and saw cutting
width are very large.

Serial number	Name of name	Brand brand	Origin
1	CNC System	Delta/Schneider	Taiwan/France
2	Computer PC	Delta/Schneider	Taiwan/france
3	Touch screen	Delta/Schneider	Taiwan/france
4	Drive	Schneider	France
5	Servo Motor	Schneider	France
6	Automatic circuit breaker	Schneider	France
7	Phase Sequence Protector	Schneider	France
8	AC contactor	Schneider	France
9	Thermal Protector	Schneider	France
10	Switching power supply	Schneider	France
11	Relay	Schneider	France
12	Low voltage switch button	Schneider	France
13	Terminal	Honeywell	United States
14	Motor motors	Seimec	Italy
15	Close switch	Autonics	Korea
16	Reducer	shimpo	Japan
17	Alloy saw blade	wagen	Japan
18	Guide rail	HIWIN	Taiwan
19	Solenoid valve	Airtac	Taiwan
20	Dynamic spindle	Anyang	Henan Province
21	High Flexible Wire Cable	yongheng	Jiangsu Province china
22	Cylinder	Baidi	Shandong Province china
