Product Description
Product Description

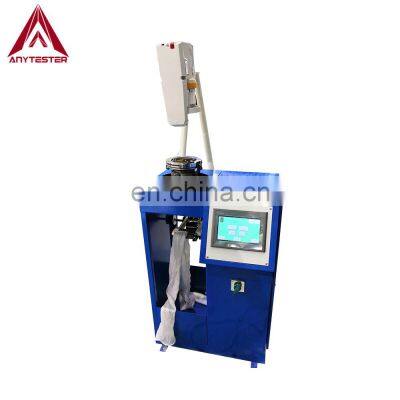

Product DescriptionAT250F Series Lab Knitting Machine is specially designed to knit fabric sample of POY, DTY or FDY for the assessment of yarn uniformity and dyeing affinity. It is applicable to various filaments of 30~1000dtex. It is an ideal equipment for dyeing test in knitting factories.SpecificationModelAT250F-IAT250F-IINeedle cylinder diameter¢89mm (3.5inch)Number of feeder1Number of needles144~300NRunning speed180r/min300r/minDisplay modeLED displayApplicable filamentPOY (customized), DTY, FDYApplicable filament fineness25~1000dtexPower supplyAC380V 50Hz,three-phaseDimensions(L×W×H)720×360×1450mm720×490×1450mmWeight85kg100kgFilament fineness (dtex)Number of Needles25~4030035~6528050~10026075~150240150~350176More than 300144NOTE-The standard needle cylinder for this machine has 240needle. If you want another needle cylinder, please inform us before order.Details & FeaturesNeedle Cylinder★ Applicable to various filaments of 25~1000dtex, such as POY, DTY and FDY;★ Standard needle cylinder has 240 needles; other needle cylinder with different needles are optional;Relationship between the filament fineness and number of needles are as below: Filament Storage Device for AT250F-II and AT250F-III ★ Equipped with filament storage device; ★ Adjustable running speed up to 300rpm (only for AT250F-III);★ Automatic knitted fabric tension device;★ LED display for AT250F-I and -II while touch screen for AT250F-III;★ Stable and reliable; Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions720×360×1450mmWeight85kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
