Brl Customized Frequency Conversion Emulsion Inline Pump

Product Description

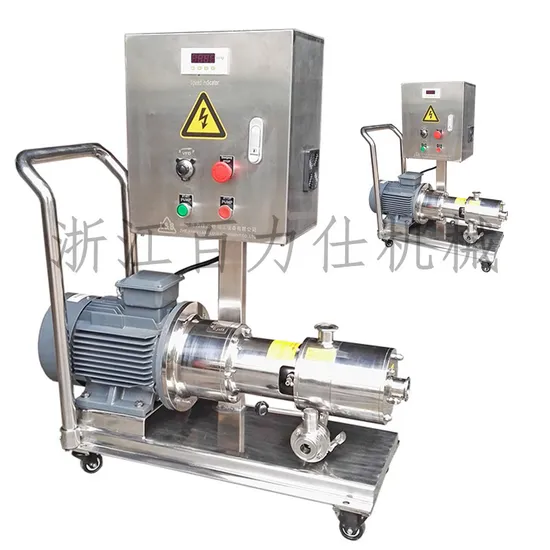

BRL-3 In-line Homogeneous Emulsion Pump
GENERAL CONSIDERATIONS.
L&B BRL-3 High shear mixer is used for the mixing, homogenizing between liquid and liquid, or powder and liquid, Belongs to the L&B High shear mixer series.
BRL-3 High shear mixer is used for the continuous dispersing and emulsifying of material with different phase. Meanwhile the mixer could also delivery low viscosity liquid.
The mixer could mixing the powder and liquid in certain rate, and have been used in cosmetic, food, pharmaceutical, chemical, petroleum, coatings, nano-materials industry
All the sanitary, reliability and rigidity meets the requirements of these industries.


OPERATION THEORY.
The mixer is composed of a few standard spare parts, which makes assembly, disassembly and maintenance easy, meanwhile avoid returning factory to repair.
Specially designed mixing head is composed of rotor and stator.
The rotor works in high speed and high-frequency mechanical effects from the motor.
The material is under the shear, centrifugal squeeze, deep friction, impact and tearing turbulence combined effects, thus achieve the effect of dispersion, emulsification, grinding.
High shear emulsifier combined of two layers or six layers of rotor and stator.
The materials go through the layers after shear dispersion and emulsifying.
APPKUCATION:
L & B Inline high shear mixer is usually installed in the bottom of the reactor or pipeline, the material go through form inlet to outlet , after high-speed shear. This process could be done continuously or in circulation.
Flow quantity: Q=4-140T/h

Viscosity range of delivering material: 0.2cp-3000cp

Max pressure at outlet: 0.05-0.2Mpa

Product temperature range: -30ºC-150ºC

We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

Model	Power (kw)	Speed (rpm)	Flow (m³/h)
BRL3-60	4	2800	0-4
BRL3-100	7.5	2800	0-8
BRL3-120	11	2800	0-12
BRL3-140	15	2800	0-18
BRL3-165	22	2800	0-22
BRL3-200	37	2800	0-30
BRL3-220	55	2800	0-40
BRL3-240	75	2800	0-55
BRL3-260	90	1480	0-65
BRL3-300	110	1480	0-80
BRL3-360	132	1480	0-100
BRL3-380	160	1480	0-120
BRL3-400	185	1480	0-140

More specification for reference:
Delivery and package:
Our company:
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Service:

Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
Process	Please provide the copy of Sales Contract and describe the problems appeared.
Problems confirmation:
Slight problem:	Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a	We will dispatch our Quality and Problems Appraisers to make a confirmation.
b	Have a negotiation of the compensation and sign agreements
c	Our After-Sales Department will perform the duties as the agreements

---
