DVB-S/S2/T/T2/C Combo Satellite Finder Digital Signal Meter

Product Description

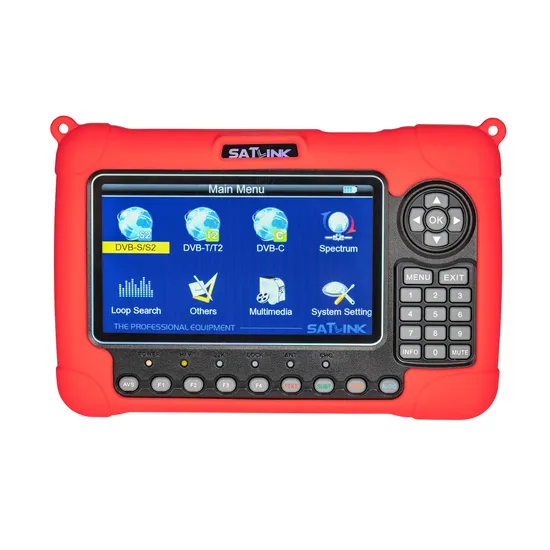

WS-6980 is a DVB-S/S2/T/T2/C and MPEG-2/4 H.264/H.265(8 Bit) compliant handheld combo meter. With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service, attenna signal and cable signal to residential homes or multi-dwelling units.

7 Inch High Definition TFT LCD Screen
Fully DVB-S/S2/T/T2/C, MPEG-2/MPEG-4 compliant
Support H.264/H.265(8 Bit) Hardware decoding
Digital meter for signal strength and quality
Constellation analyzer
Spectrum analyzer
Supports scan of Auto,Blind, Manual or NIT
Sound and Light Alarm for Locking Signal
Auto Calculate Angle of AZ ,EL
Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
Speaker Integrated
Support both AV out and AV in
Support both HDMI out and HDMI in
Support compass function
Optical Power measurement
LNB short protect
7.4V/5000mAh Li‐ion Battery Included
Software upgrade via USB port
Easy to carry

Resolving rate	PAL-25 frame@720*576,NTSC-30 frame@720*480
Signal compatibility	Support conversion for different video formats
Video Format	4:3,16:9,By Pan & Scan and Letter Box conversion
Audio Decompression	MPEG-1 Layer I/II, MPEG-2 Layer I/II
Audio Output Mode	Stereo, Mono,R/L
DATA SERVICE PORT
Connector	USB
Data Protocol	USB2.0 interface
File Management System	NTFS,FAT32,FAT16
File Format	wma,mp3,mp4,avi,jpg,jpeg,bmp,img
POWER SUPPLY
Li‐Ion Battery	7.4V/5000mAh(The machine behind labeling shall prevail)
Adapter	OUTPUT :DC12V/1.5A, INTUPT :100~240VAC 50/60Hz(Will be subject to actual configuration)
Power Consumption	Max. 10W
PHYSICAL CHARACERSTICS
Size (W x D x H)	25 x 15.6 x 4 (cm3)
Net Weight	1kg

---
