Mini Bench Drilling Milling Machine Zx50z Auto Feed Milling Machine

Product Description

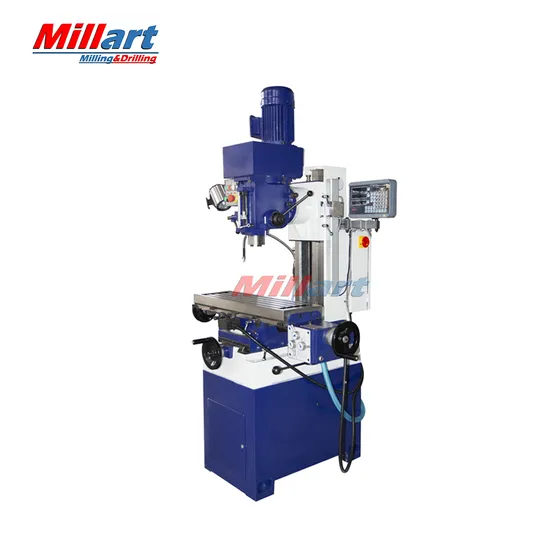

Mini Bench Drilling Milling Machine ZX50Z Auto Feed Milling Machine
Feature:
1. Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. Gear box spindle drive,with automatic feeding of spindle and micro feeding.
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Technical parameter:

Model	ZX50Z
Maximal drilling capacity	40 (ISO)
Maximal milling width	80 mm
Maximal milling capacity	25 mm
Number of spindle speeds	8
Spindle speed range	60 - 1500 rpm
Spindle distance from column surface	320 mm
Spindle distance from table	30 - 350 mm
Spindle travel	120 mm
Table travel	360 x 210 mm
Table size	800 x 240 mm
Motor	1.5 kW
Dimensions	1280 x 970 x 1650 mm

Standard accessories:

Drill chuck

Collet chuck kits

Work lamp

Coolant system

Some tools

Reduction Sleeve

Draw bar

Optional accessories:

X axis auto power feed

Worktable swivel

2 axis DRO

3 axis DRO

Machine Vice
