Product Description
Product Description

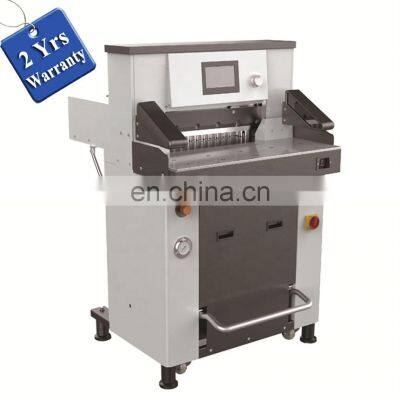

FRONT brand GC520H Digital Display grey board Hydraulic Guillotine Paper Cutting Machine
Videos
Video demonstration only for reference
GC490H Video: /watch?v=d0lzRQurGiY
GC520H Video: /watch?v=CXW7Y2gIhLE
GC670H Video: /watch?v=YoV9Y1VDrA0
Product Description
Parameters:
Models
| GC490H
| GC520H
| GC670H
|
Features
| Table top stainless steel plate without ball
| 8mm thick aviation aluminum belt ball operating table.
| 8mm thick aviation aluminum belt ball operating table.
|
Max Cutting Size
| 490*490MM
| 520*520MM
| 670*670MM
|
Max Cutting Thickness
| 80MM
| 80MM
| 80MM
|
Min. Cutting Size
| 30MM
| 30MM
| 30MM
|
Cutting Accuracy (mm)
| ±0.2
| ±0.2
| ±0.2
|
Ball table
| Stainless steel table
| Ball table
| Ball table
|
Press Way
| Hydraulic+Pedal
| Hydraulic+Pedal
| Hydraulic+Pedal
|
Cutting Way
| Hydraulic
| Hydraulic
| Hydraulic
|
Display
| 7" Touch Screen
| 7" Touch Screen
| 7" Touch Screen
|
Push Motor
| Step motor
| Step motor
| Step motor
|
Power
| 220V,50/60HZ, 1.9KW
| 220V,50/60HZ, 1.95KW
| 220V,50/60HZ, 2.35KW
|
Side Table
| Optional
| Optional
| Optional
|
Dimension
| 1280*980*1430mm
| 1280*1010*1430mm
| 1565x1030x1470mm
|
Net Weight
| About 360kg
| About 400kg
| About 450kg
|
Detailed Images
Infrared safety protection design
Man-machine interface design,100 groups*96 cuts program
Back platform without groove design overhanging ball screw push paper more stable
High speed hydraulic system, high cutting speed and high efficiency
8mm thick aviation aluminum table with floating balls
Push book platform can be folded,covenient transportation
Dual hydraulic power control system, Taiwan main motor, providing strong power, imported hydraulic valve parts
Mechanical foot, cut riding nail book pre-alignment more convenient, higher precision
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Pack & Ship
Wooden Case Loading and Transport
