US$700.00-2,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
ZXTM40 ZX50C ZX45 ZX32G ZX32G-1
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Certification
CE, RoHS, ISO 9001
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description

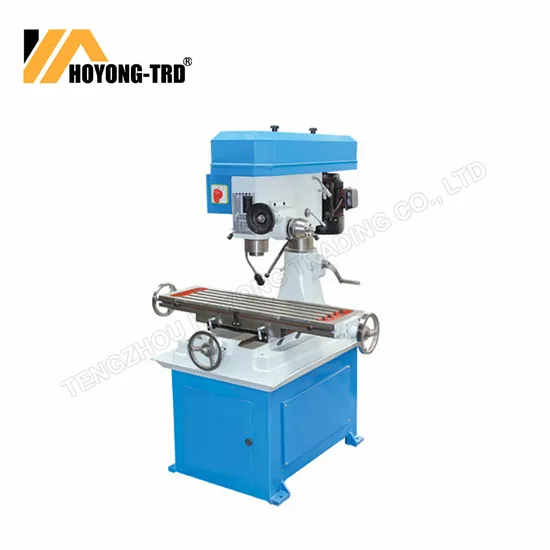

SMALL DRILLING AND MILLING MACHINE FEATURES:
1.Belt-driven and round column.
2. Milling, drilling, tapping, boring and reaming.
3. Micro feed precision.
4. Strong rigidity, powerful cutting and precise positioning.
SPECIFICATIONS:
| SPECIFICATION | UNIT | ZXTM40C |
| Drilling capacity | mm | 40 |
| End milling capacity | mm | 100 |
| Vertical milling capacity | mm | 20 |
| Boring capacity | mm | 120 |
| Tapping capacity | mm | M16 |
| Distance between spindle nose and worktable | mm | 120-550 |
| Range of spindle speed | r.p.m | 168-3160 |
| Spindle travel | mm | 120 |
| Table size | mm | 800 x 240 |
| Table travel | mm | 400 x 250 |
| Overall dimensions | mm | 1100 x 1050 x 1330 |
| Motor power | kw | 1.5 |
| N.W/G.W | kg | 410/460 |
>>
