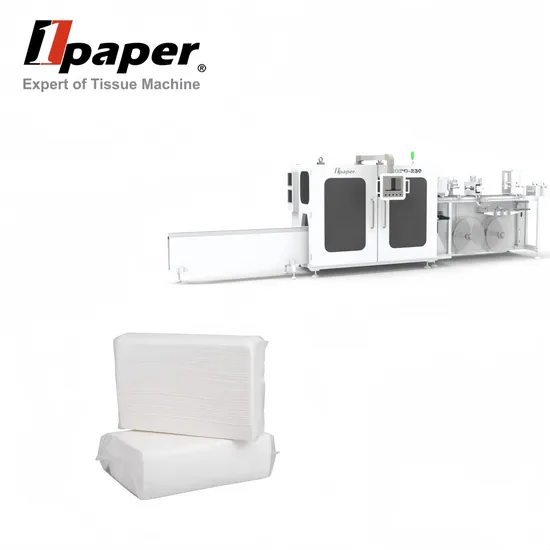

Compact Hand Tissue/Paper Towel Machine for Water-Resistant Paper

Product Description

Automatic hand towel paper N/Z fold machine production line
Step 1: N fold machine
application: fully automatic making for hand tissue/kitchen tissue
features: compatible for single-ply/multi-ply paper,adjustable paper weight and size, middle linear discharging or folding, two ends trimming cut function.
speed: max 150m/min
various embossing (steel to rubber, steel to steel, and glue lamination can be optionally provided.
Step 2: hand towel cutting machine logsaw
610mm round knife made of German material
full servo control
speed 150cut/min, max cut width 350mm
Step 3: automatic hand towel tube film packaging machine
application: fully automatic packing and sealing for hand tissue &kitchen tissue
fratures: more intelligent full servo motion control, double discharging roll, rapid roll changing time,etc
it can solve the problem of low manual packaging efficiency.
the seals are beautiful, improving product image.
speed 30-60bag/min
Product Parameters

Tem/Model	OPFD-N folding machine
maxi jumbo roll width	1500/1800/2000/2800(optional)
inner diameter of jumbo roll core	3 inches(around 76mm)
jumbo roll tissue specific	(1) Quantitative: 30-42g / m2 single layer paper; double layer 18-25 g double layer.(2) base paper size: φ 1600 (maximum diameter) 1420mm; (3) base paper core diameter: φ 76mm; (4) base paper expansion rate of 20% -25%;
fold size	210mm (optional)
folding speed	150m/min
vacum pump power	30kw
motor power	7.5kw

Tem/model		pack machine : OPO 230Serirs
Packaging form		tube film
Packing material		PE,CPP,BOPP
Bag specification	max Length	230mm
	max Width	190mm
	max Height	80mm
Maximum packing dimensions		L230*W190*H80mm
Packing speed		≤60(bags/minute)
Heating power		7KW
Motor power		16KW
Total power		23KW
Power supply type		Three-phase five-wire 380V 50Hz
Machine noise		≤80dB
Air supply		0.5-0.7 MPa
Air consumption		200-260L/min
Outline dimensions	Main machine
		L6698*W1191*1858mm
Machine weight		≈3500Kg

Detailed Photos

Printing Samples
Company Profile Found in 2010
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.is a national high-tech enterprise and Zhejiang Specialising in ultra new enterprise . Focus on tissue paper equipment for 15 years, the main automatic tissue paper production line, automatic cotton soft production line, etc. It has rich experience in new factory preparation consulting of tissue paper. production workshop layout design, digital factory construction, production line transformation and upgrading, etc. it has sold well as 1000 customers in Kimberly-Clark, Vinda,Hengan, Gold Hongye and other 1000 customers in 60 countries or regions, etc., and is highly recognized.
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.
Our Workshop
Exhibition
Our Parthers
Certification
FAQ Q: Are you manufacturer or trading company?
A: We are the professional machinery manufacturer in packaging and printing industry for 15+ years covering an area of 8,000 square meters,have more than 104 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city, Zhejiang Province, China.
Q: What is the advantages of your factory compared with other suppliers?
A: 1. Technical strength: We are the leaders of the Chinese packaging machinery industry. We have strong technical strength and can develop and produce high -quality and efficient packaging machines. we currently have 9 successful packaging and printing projects. We can provide you with a full set of solutions to meet the packaging needs of different industries. 2. Product quality: From accessories to finished products, we have strict quality control and detection processes to ensure the stability and reliability of the product.Providing solutions and services to 1,000+ customers across 50+ countries and regions, earning high recognition. Our product repurchase rate reaches 72.8%, with the highest individual customer repurchasing 27 times. Leading sales in the Arab and North African regions. 3. Product customization: We can customize design and production according to the needs of customers to meet the special requirements of different customers. Provide personalized solutions to help customers improve production efficiency and reduce costs. 4. After -sales service: After -sales service is one of our biggest advantages. We provide timely and professional technical support and maintenance services to ensure that we can quickly respond to the needs of customers, solve problems, and ensure the normal operation of the equipment. 5. Innovation ability: We continue to carry out technological innovation and product upgrade to meet the changes in the market and customer needs. Continuously improve the performance and functions of products and provide customers with better solutions.
Q: What information should I provide if I want to get a quotation?
A: First, paper type which you wanna make, second, the size of paper bag, third, the thickness of paper bag, after collect the basic information, then we will suggest the right machine model to you!
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.

---
