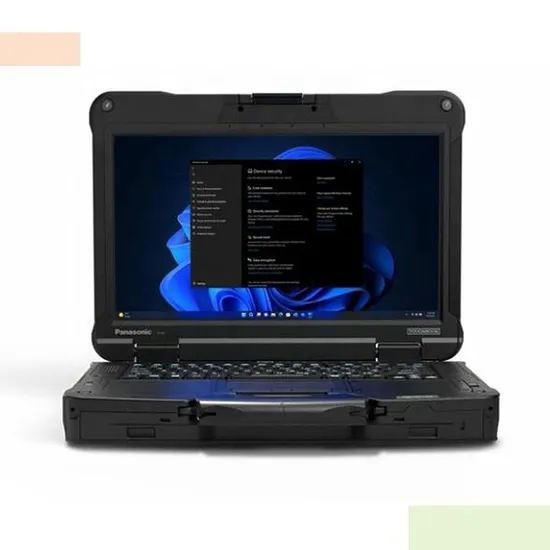

| Mobile Computing Platform Intel® Core™ i5 1145G7 vPro™ Processor /Intel® Core™ i7 1185G7 vPro™ Processor optional Operating System Windows 11 Pro 64-bit (Windows 10 Pro 64-bit Downgrade Model is available) RAM 16GB DDR4 RAM (max. 64GB) Graphic Chip Intel® UHD Graphics, support Intel® Iris® Xe Graphics when 2 RAM Modules installed Storage 512GB NVMe OPAL SSD (max. 2TB) LCD 14" Active Matrix (TFT) colour LCD 1920 x 1080 pixels (Full-HD), 1.200cd/m²brightness, capacitive 10 finger Touch Screen Bluetooth™ 5.1 Class 1 Wireless LAN Intel® Wi-Fi6 AX201 Mobile Broadband* 4G EM7690 with eSIM support/ 5G EM9190 with Stand Alone and eSIM support Global Positioning* u-blox NEO-M8J (supports GPS, GLONASS, Beidou, Galileo) LAN IEEE 802.3 10Base-T /IEEE 802.3u 100BASE-TX /IEEE 802.3ab 1000BASE-T (2nd GLAN optional) Sound Waves MaxxAudio® Stereo Speakers Enhanced Voice Recognition* 4 Microphones Front Camera 5 MP with IR / privacy shutter (Windows Hello compliant) Micro SDXC Memory Card x1 USB 3.2 x2 Thunderbolt 4 x1 HDMI x1 Headset x1 DC In x1 Port Replicator x1 Quad Path Through Connector x1 Left Expansion Area** 2nd SSD (SATA), Smart Card Reader, DVD Multi Drive, Blu Ray Drive Right Expansion Area** 2nd Battery, Smart Card Reader Palm Rest Expansion Area** Fingerprint reader (Windows Hello), Fingerprint reader (Windows Hello, Multi-user authentication), Contactless Smart Card Reader (HF-RFID) Rear Expansion Area** VGA + True Serial (RS232) + 2nd native GLAN or USB 3.1 Type A + True Serial (RS232) + 2nd HDMI or USB 3.1 Type A + USB 3.1 Type A + 2nd HDMI AC Adapter Input: 100V - 240V AC, 50Hz/ 60Hz, Output: 15.6V DC, 7.05A Battery Lithium-Ion 10.8V, 6500mAh (typ.), 6300mAh (min.) Battery Life Approx. 18 hours (Mobile Mark™ 2014); Approx. 36 hours with 2nd battery (Mobile Mark™ 2014) Power Management Standby function, ACPI BIOS Hot Swap* With 2nd Battery Dimensions (WxHxD) 345mm x 301mm x 54.4mm (without protruding parts) Security TPM (TCG V2.0 compliant) Password security (supervisor password, user password, hard disc lock) Integrated hardware security lock slot Weight Approx. 3.35 kg Operating Temperature*** -29°C to +63°C Standard Configuration FZ-40mk1, 16GB RAM, 512GB SSD, battery pack Included in the box Power Supply, Power Cord, capacitive pen, Display cleaning cloth and User Manual Drop Resistance*** 180cm Dust Resistance*** IP6x Water Resistance*** IPx6 Resistance*** Drop: 180cm; Water: IPx6; Dust: IP6x Footnote *Optional; **Exclusive Option, pre-configured or accessory; ***Tested by an independent third party lab following MIL-STD-810H and IEC 60529 |
