Product Description
Product Description

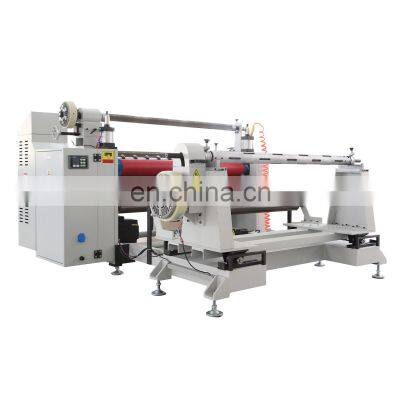

Product DescriptionTechnique DataMachine Speed : 180m/min Slitting speed control in less than 120 m per minute is better Max material width unwind : 1300mmunwinding Diameter :1000 mmunwinding core diameter : 3 inch Rewinding diameter : 500mmSlitting accuracy :±0.1mmVoltage: 380V 50HZMain Motor Power :3kw Total Power:5.5KW Raw material Max inner hole diameter: 3”compress air source:（0.4-0.6）Mpa(customer-owned)Finished products Min. Width by standard slitting :15MMMain Machine size :2400*2300*1300mmFeeding machine size : 1950*880*780mmWeight : 2.2TCharacteristics and Functions: 1.This machine is slitting equipment of high precision and high sensitivity,with inflatable bearing used for feeding and receivingmaterials.2. Imported magnetic powder clutch is adopted to control the tension.3. Imported gas sensitive device is adopted to detect the rectification of rolling,with fully automatic hydraulic rectificationcontrol.4. Automatic detection,rectification and metering can be realized.5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain6. Clockwise and counter-clockwise rewinding systemAfter-service:1. Warranty for machine: 12months2. After-service: A reply within 24 hours3. A free training in our factory available before delivering machines Payment Term : 40% TT advanced .60% paid off before shipment Delivery time : have machine in stockSpecificationitemvalueApplicable IndustriesProcessing lineShowroom Locationpaper processing lineConditionNewProduct TypePaper Straw Making MachineProcessing TypePaper Slitting and Rewinding MachinePlace of OriginChinaJiangsuBrand NameDapengVoltage380vPower6kwDimension(L*W*H)2.2*2.0*1.5mWeight2400kgWarranty1 YearProduction Capacity5sets per monthMachinery Test ReportProvidedVideo outgoing-inspectionProvidedMarketing TypeNew Product 2021Warranty of core components1 YearCore ComponentsPLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, GearboxNamepaper processing line strawing paper cutting machineing width1300mmpulling rollerPUair shaft3 inchSpeed150m/minUsagePaper Converting MachineCompany ProfileKunshan Dapeng Precision Machinery is professional manufacture of high precision Die Cutting Machine and high precision hydraulic die cutting machine , Slitting machine,laminating machine ,Roll to Sheet Cutting Machine, Hot and cold type sheeting machine and other machinery. Our machines are mainly used for the production of industrial tapes, electronic shielding films, protective films of PVC/PET, copper aluminum foils, foams and other relate materials. Our company has excellent production equipment and strong technical force. We constantly improve our management system and after-sales services. Our company has won a good reputation among customers.Our company adopts foreign advanced technology. Through several times of manufacturing reform and innovation, we have developed consistently. We can customize difficult models. We not only provide users with products, but also provide services and professional technology for our customers.In the fierce market competition, we always adhere to the tenet of "quality first, users first" for the purpose to provide more perfect products and more superior services. We hope to cooperate with you to create a win-win situation.
>>
