Basic Info.
Making Method of Parison
Stretch Blow
Computerized
Computerized
Certification
CE, ISO9001:2008
Key Words
Blow Molding Machine
High Air Compressor
1.2m3/3.0MPa
Low Air Compressor
1.6m3/1.0MPa
After-Sale Service
Engineers Available to Service Machine
Transport Package
Wooden Case
Production Capacity
100 Sets/Year
Product Description
What is Blow Molding Machine?
Blow Molding Machine is one kind of two step stretch type bottle making plant.
Blow Molding Machine is suitable to produce plastic bottles based on PET raw material.
Blow Molding Machine is widely used to produce carbonated soft drinks
bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles etc

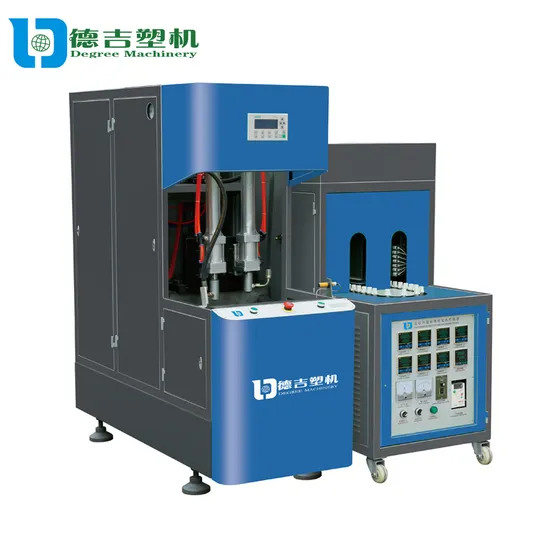

Detailed Photos
Product Parameters
Model
| DEG-3L (One Blower & One Heater)
|
Clamping Force
| 100KN
|
Clamping Stroke
| 160 MM
|
Max. Stretching Stroke
| 360MM
|
Number of Cavities
| 2 Cavity
|
Theoretical Output
| 900 BPH(500ml)
|
Max. Mold Thickness
| 300MM
|
Voltage Standard
| 380v/3PH/50Hz or special order
|
Number of Heating Zone
| 4 Sections
|
Total Power (Full Loaded)
| 10KW
|
Max. Container Volume
| 2L
|
Neck Diameter Range
| 18-120mm
|
Max. Container Diameter
| 360mm
|
Max. Container Height
| 380mm
|
Low Air compressor
| 10Bar
|
High Air compressor
| 30-40Bar
|
Blow molding machine
| 1450*600*1700mm
|
Preform Heater
| 1800*700*1400mm
|
Net Weight
| 850kgs
|
Certifications
Packaging & Shipping
Company Profile
FAQ
Q1 :What kinds of product you supply?
A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
>>
