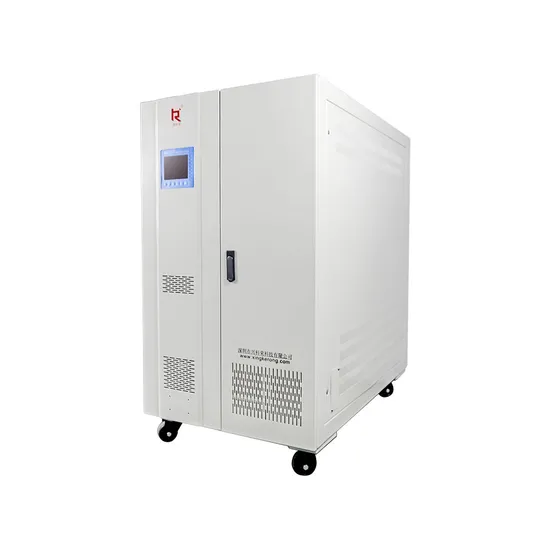

150kVA Intelligent AC Industrial Voltage Frequency Stabilizer Regulator for CNC Machines

Product Description

Advance:
AVR and SBW series AC compensation voltage stabilizer(hereinafter referred to as voltage stabilizer). it is an power supply product which is developed by our company and combines the international advanced technology and our nationl condition.it can keep the output voltage stabilized while the input voltage changes.
This series product has many advantages compared with the other type voltage stabilizer, such as large capacity, more efficient,no wave distortion,steady voltage adjustment,available for different kinds of loads, withstand overload for short time, working for a long time, unattended,freely swith between manual
control and automatic control,freely switch between mains supply and stabilized voltage supply.set up protection devices for over-voltage,under voltage,over current,delay and mechanical breakdown,small size,light weight,install and use conveniently.
Its Features:
1.Industry proven design
2.small size,light weight,easy install
3.Maintenance free
4.Hassle-free performance
5.Widely Input Ranges can be supported to meet Particular needs
6.Reliable, Prompt After-Sales Service(2 years warranty)
7.Energy Efficient Products saving on Power Fees
8.Indoor(IP23) orOutdoor(IP65) can be choose
Application:
1.CNC Machining Centers 2.SMT 3.Printer 4.EDM
5.High way/railway system 6.Medical facilities 7.Laser cutting machine 8.Circuit board drilling machine
9. Automatic insertion machine 10.CNC punch press 11. Net communication basic system
12.Petrochemical/Oil/Power system 13 Broadcast/Television/Bank system 14 Plastic Injection Molding Machines
15 Particularly suitable for large power fluctuations, worst power supply environment because transient mutations voltage, and where voltage regulation is needed.
Technical parameters:

1	Type		AVR
2	Capacity		200KVA
3	AC Input voltage	Switch	3P315A(CHINT brand switch)
		Phase	Three Phase
		Voltage	304V-456V (or customized)
		Frequency	45HZ-65HZ
4	AC Output voltage	Phase	Three Phase
		Voltage	380V (or customized)
		Frequency	50/60HZ
5	Rated output current		303A
6	Voltage Accuracy		±1-5%V Adjustable(Factory set±2%)
7	Load working		Continuous working keep 80% load
8	Efficiency		>98%
9	Response time		<0.1s
	Waveform Distortion		No distortion (the same with input waveform)
10	Insulation strength		2500V/Min
11	Insulation Class		H class(200 degree C)
12	Cooling method		Natural cooling/Fan system cooling
13	Resist electric strengh		2500VAC/min
14	IP		23
15	Noise		≤55db(Noclude forced air cooling system)
16	Temperature Rise		≤75ºC
17	Environment	Ambient Temperature	-10~55ºC
		Related humidity	15~85%(25ºC)
		Altitude	<1500M
18	Size:		Length1200 *Width 650* High1500(mm)
19	Weight :		Net weight:680KG Gross weight: 725KG
20	Warranty:		2 years

21.Protection Function	Over/under voltage protection	When the input voltage exceeds the value of over/under voltage, the stabilizer will protect automatically
	Over current	When the current exceeds the rated value, automatically cut off the input
	Overload and short circuit protection	When the load exceeds the overload value or short circuit of the equipment, it can cut off the power supply within the specified time;
	Position Limitation Protection	When the brush is running over the area, automatically stop adjustment;
	Bypass Protection	When the voltage stabilizer needs maintenance or in failure, the switch can be switched manually in the power supply;
	Effective sampling circuit control	High accuracy, good sensitivity, frequency characteristic measurement, good rate, high input impedance, low output impedance, wide range and low power consumption power supply
	Circuit Function	When the sampling voltage is lower than the lower reference voltage or higher than the upper limit voltage, the brush will automatically return to the center;
	Temperature protection	Three phase Over temperature protection protection
	Warning	Smoke Warning device

200kva voltage regulator product pictures for you reference:
Some Xingkerong testing machine:
FAQ: Q1, Are you a manufacturer or a trading company?
Re: We are an original manufacturer working from design, production to sell, specializing in various voltage regulator stabilizer, transformer, UPS and solar inverter for more than 11 years.
Q 2, what's the payment terms?
Re: We accept T/T, PayPal, Western Union, Alipay.
Q 3, What is your standard of packaging?
Re: For the small capacity voltage regulator stabilizer/transformer/UPS/solar inverter, we will use carton, for big capacity products, we shall use strong wooden case for good protection.
Q 4, Can you accept OEM /ODM?
Re: Yes, we welcome OEM/ODM orders for voltage regulator stabilizer/transformer/UPS/solar inverter. We offer customer with customized products, as we have strong R&D team with 5 experienced engineers to meet kinds of custom requirements.
Q 5, how's the delivery time ?
Re: Usually it will take about two weeks for production, also depending on the order quantity. Voltage regulator stabilizer/transformer/UPS/solar inverter.
Q 6, How do you control quality?
Re: We have QC to inspect the goods during materials coming, production, and packaging. 100% full inspection is guaranteed before delivery.
Q 7, What's your shipping method?
Re: We are in Shenzhen, near to Hong Kong. All shipments are convenient here. International express (TNT, UPS, DHL and FedEx), by air and by sea. We always compare at least 3 shipping costs before decision.
Contact Info:
If you have any questions and helps,please contact us freely,we will be 24 hours on your side.
Sales:Rebbeca
Phone number:+86 13823734207
Wsp ID:+86 13823734207
Wcht ID:13823734207

---
