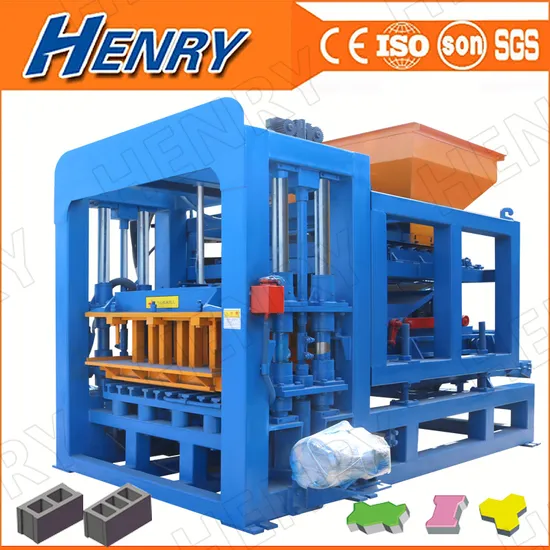

Henry Qt6-15 Strong Full-Automatic Hydraulic Hollow Curbstone Block Brick Making Machine

Product Description

QT6-15 is a benchmark product model developed by the Henry brand in the context of pursuing extreme automation, high production efficiency, and intelligent parameter setting.
QT6-15 is different from previous hydraulic block machine models. It has a wider body and increases the output by increasing the mold size. We have made a lot of efforts to improve the synchronous and frequency vibration force of the hydraulic block machine. That is, not only to ensure the increase in output, but also to better distribute the proportion of raw materials with the increase of concrete raw materials, to achieve low-frequency feeding, high-frequency vibration molding, reasonable allocation of vibration start-up time difference, intelligent detection of the overall density and strength of the block, and achieve a uniform state during the entire hollow block extrusion process.
QT6-15 full automatic hydraulic press brick making machine
1. It is full automatic concrete brick making machine. Basic production line includes cement silo, batching machine(PLD1200), mixer (JS500), host machine, PLC, hydraulic station, stacker and pallet feeder. Only those can production line be called full automatic production line
2. It has hydraulic press. So the bricks are harder. Simens motor and Nothman Solenoid valve
3. It can make different hollow, solid and paver bricks by changing molds.
4. Six to eight workers are enough.

5.The circle mark is obvious,never explode the cylinder Full tonnage,Full stroke Tight lock,no oil leakage
6.Steel wire spiral hose Bear High temperature and high pressure Flange interface,sealed well no oil leakage

Overall Size	4350*1560*2400mm
Weight Of Host Machine	8000KGS
Pallet Size	960×700×25mm
Power Of Host Machine	29.7KW
Vibration Force	70-90KN
Forming Period	12-20S
Voltage	380V/50Hz
Automatic Grade	Automatic

Related Products
FAQ
Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.
Q:What is your Minimum Order Quantity?
A:Minimum order quantity is 1 set machine, anyway, special will bu give on larger scale.
Q:How does your factory do regarding quality control?
A:Quality first,customers foremost".We always attach great importance to quality controlling from the very beginning to very end.
Q:May I visit your factory?
A:Sure,welcome any time .We can also pick you up at airport and station.
If you are interested in our products please contact with us.We will reply you as soon as possible. We believe that we are always your honest and reliable supplier.

---
