Basic Info.
Structure
Aluminium Alloy
Application
Clarified Water Pump, Clean Water Pump
Performance
No Leakage Pump
Transport Package
Carton Box
Specification
480*405*400mm
Production Capacity
10000piece/Month
Packaging & Delivery
Package Size
480.00cm * 405.00cm * 400.00cm
Package Gross Weight
25.000kg

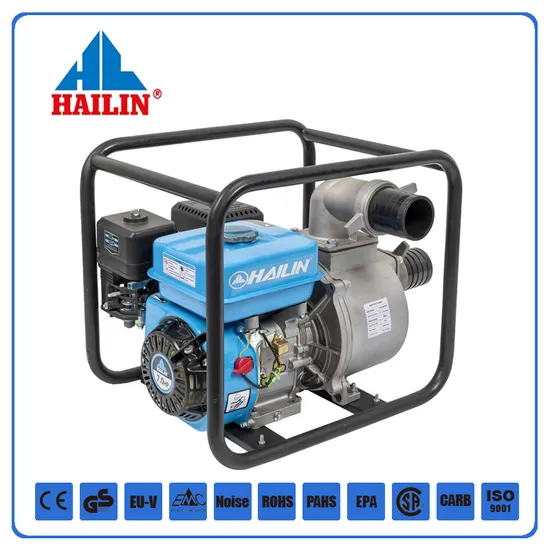

Product Description
| Model | HLW50 | HLW80 | HLW100 | HLW150 |
| Inlet inch (mm) | 2"(50mm) | 3"(80mm) | 4"(100mm) | 6"(150mm) |
| Outlet inch (mm) | 2"(50mm) | 3"(80mm) | 4"(100mm) | 6"(150mm) |
| Max.head (m) | 32 | 28 | 25 | 20 |
| Suction lift (m) | 8 | 8 | 8 | 5 |
| Max.flow (L/min) | 570 | 1000 | 1350 | 2800 |
| Model | HL210 | HL210 | HL420 | HL420 |
| Displacment (cc) | 208 | 208 | 420 | 420 |
| Maxium output (HP) | 7 | 7 | 14 | 14 |
| Working speed (rpm) | 3600 | 3600 | 3600 | 3600 |
| Fuel tank capacity (L) | 3.6 | 3.6 | 6.5 | 6.5 |
| Dimension (mm) | 460*420*385 | 505*445*450 | 650*535*555 | 885*640*760 |
| Weight (kg) | 25KG | 29KG | 47KG | 129KG |
Fujian Hailin Group was founded in 1999. Equiped with advanced production lines for casting, metal plate processing, maching and coating, Haiin is a modern enterprise that intergrates scientific research and development, production, sales and service, and import and export trade of water pump set and water pump, diesel generators. As one of the leading company in terms of company scale, technical strength and product quality within the industry, Hailin has gained its stable customers basis like HONDA, SAWAFUJI, HITACHI, and other international well-know companies with a series of related certification including ISO9001, EPAIII, EU-V, CE, EMC, ROHS.
1.Q:Are you a factory or trading company?A:We are a factory. 2.Q:Where is your factory located? How can I visit there?A: Our factory is located in Fuzhou City, Fujian Province, China, about 4.5 hours by train from Shanghai . All our clients, from home or abroad, are
warmly welcome to visit us! 3.Q:What is the material of your products?A: Only New material can be used for our products.Materials for Generator: aluminum for crankcase, copper for motor wireMaterials for Water Pump: aluminum for crankcase and pump body 4.Q:What is Minimum Order quantity?A: MOQ 30 pieces for each item. 5.Q:How does your factory do regarding quality control?A: From the internal parts to the outside packing, we not only make standard quality test,but also think ahead for a better solution. Except company QC system, We have achieved CE certificate.
6. Q: How long is the delivery time?
A: Around 30 days after receipt of 30% deposit.
7. Q: What's the payment terms?
A: T/T 30% deposit before production and the balance once upon the BL copy or irrevocable LC at sight confirmed by world famous bank.
>>
