3-5t/H CE Farm Use Animal Poultry Chicken Cattle Sheep Alfafa Feed Pellet Making Processing Machine/Mill

Product Description

3-5t/H Poultry Animal Chicken Feed Pellet Machine Feed Processing Machine Cattle Sheep Alfafa Feed Pellet Mill Machine 5t/H Poultry Animal Chicken Feed Pellet Machine Feed Processing Machine Cattle Sheep Alfafa Feed Pellet Mill Machine Product Description
1. Introductions of feed pellet production plant/feed pellet making machine :

Raw materials	corn,wheat bran,fish meal,bone powder,meat,alfafa,grassetc.
Diameter of feed pellet	2/2.5/3/3.5/4/6/8/10mm
Application	feed pellet machine/plant widely be used for home,poultry and livestock farm.
Capacity	1-3T/H,also can customized according to your demand
Process Step	crushing-mixing-pelletizing--cooler&screener--packing
Warranty	1Year(except spare parts)
Certication	CE
Motor	Siemens Brand Motor
Bearing	Brand
Service after sales	Engineer can provide technical support

Customer Feeback
Product Parameters
Catalog of CM Series Feed Pellet Making Machine :
CM Series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer industry and sugar industry.
1).Small and Middle Scale Farm Use Feed Pellet Machine

Parameter/Model	CM-30B	CM-25B	CM-25A
Output(kg/h)	2000	1000-1500	1000-1200
Power (kw)	30+0.75	22+0.75	22
Revolving Speed of ring die (r/min)	330	306	306
Inside diameter of ring die(mm)	304	250	250
Pellet diameter(mm)	Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	1.35*1.3*1.6	1.1*1.15*1.25	1.1*1.15.1.25
Weight(kg)	960	710	625

2). Large scale farm use feed pellet machine:

Model	Main power(kw)	Out-put(t/h)	Power of Conditioner(kw)	Power of screw feeder(kw)	In-side of rind die(mm)
SZLH320	37	2-3	2.2	0.75	320
SZLH350	55	3-5	3	0.75	350
SZLH400	75/90	3-10	5.5	1.5	400
SZLH420	90/110	3-14	5.5	1.5	420
SZLH508	110/132/160	6-15	7.5	2.2	508
SZLH558	180/200	10-20	11	2.2	558
SZLH678	220/250	25-30	18.5	3	678

Detailed Photos
Production flow chart of poultry feed pellet production plant:
Crushing - Pelletizing - Cooling&Screening - Packing -Electric Control Cabinet
Machine list of Alfafa Feed Pellet Production Plant:

1	Hammer Mill	Crush raw materials into powder
2	Feed Mixer	Mixing different kind of powder raw matrial unforly
3	Feed Pellet Machine	Process powder feed into different size pellets for different animals
3	Cooling&Screening Machine	Cooling hot feed pellets,screening dust out of pellets, keep pellets cleaning.
4	Packing Machine	Pack pellets into bags for long times storage and transport, sales.
5	Control Cabinert	Control all machines of feed pellet production line at production room

Details Introduction of Complete Feed Pellet Production Plant :
1. Hammer Mill: Widely used in feed mills, food factories, livestock farms, etc; Used for crushing various kinds of pellet raw materials such as corn, sorghum, wheat, bean, wood chip, etc; it's an ideal general type hammer mill; Rotor has passed high precision balance test; small vibration and long service life; The hammer, screen and pin axle have gone through special heat treatment; they have a long service life and high crushing effect; The operating door has a self-locking mechanism, convenient, safe and reliable.
2). Feed Mixer: HJJ series of horizontal ribbon mixer is suitable for concentrated feed, the full price of powdered feed mixing. Specially designed nesting institutions open angle, rapid discharge, fast discharge, small residues. Double helix ribbon hybrid mixed in no dead ends, short cycle. Designed with liquid oils to add pipe. Pneumatic or manual door opening mechanism, convenient and reliable. The novel structure of the rotor gap between the rotor and the casing can be adjusted to near zero.
3). Feed Pellet Machine :
SZLH series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer industry and sugar industry.
4). Counter Flow Cooler & Screen Adopt counter-flow cooling theory, the pellets cooling fully and evenly; Adopt unique vibrate materials discharging institution, discharging evenly, no residue; The pellets after cooling, the temperature not higher room temperature 3-5 degree; Unique arc-shaped cooling bin, no cooling dead corner.
5). Packing Machine: New controller with high precision can display the total weight, number of package, easy operation. The adaptive software, having the function of automatic control parameters setting, automatic drop revising, over-weight warning and auto-diagnosis. Wide packing range, it can match well with conveyor and sewing machine Adopt imported sensor, pneumatic actuator, easy maintenance and non-pollution. The main materials body is carbon steel, with painted plastic. And material contact part is stainless iron, corrosion resistance, long service life Communication interface can be offered if need, realization of data communication with PC
6). Control System: Control all machines of whle feed pelelt production plant in workroom.
Final Feed Pellets
Final Different Size Feed Pellets for Different Animals

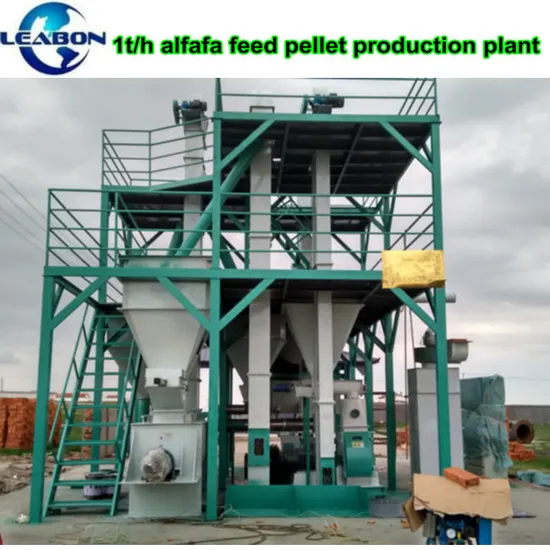

Feed Pellet Production Line
Supply Different Capacity Feed Pellet Production Line
1). Horizontal Type Semi-automatic Feed Pellet Production Line
2). Vertical Type Automatic Animal Feed Pellet Production Line
Company Profile
CE Certification of Feed Pellet Machine
FAQ: Before quote, pls confirm follows information with us.

Q1> What's the raw materials can be make for feed pellets? A1> Corn/soybean/wheat/wheat bran/fish meal/bone powder/meat/grass/alfafa etc.

Q2> What's the capacity chicken feed pellet mill? A2> 500-5000KG/H.

Q3> What's your MOQ? A3> Our MOQ is 1 Set.

Q4> What's your warranty? A4> Warranty: 1Year(except spare parts)

Q5> What's your payment terms? A5> T/T, L/C, Credit Card, Western Union.
