Stainless Steel Flour Batch Agitation Paddle Mixer Blade Blender

Product Description

Stainless Steel Flour Batch Agitation Paddle Mixer Blade Blender
Reference parameter:

Model no.	Effective volume(L)	Loading coefficient	Power(KW)	Rotate speed(R/min)	Size(mm)	Weight (kg)
TDS-200	200	0.6-0.8	4.0	53	1800X900X1110	430
TDS-300	300	0.6-0.8	5.5	53	1900X1000X1250	680
TDS-500	500	0.6-0.8	7.5	45	2050X1200X1250	890
TDS-1000	1000	0.6-0.8	11.0	45	2500X1200X1350	1360
TDS-1500	1500	0.6-0.8	15.0	39	2950X1350X1400	1780
TDS-2000	2000	0.6-0.8	18.5	39	3330X1500X1650	2260
TDS-3000	3000	0.6-0.8	30.0	31	3650X1880X1950	3150
Pls feel free to contact us if you need more technical parameters!

FAQ 1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Euope , American , Australia , Asia , Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year

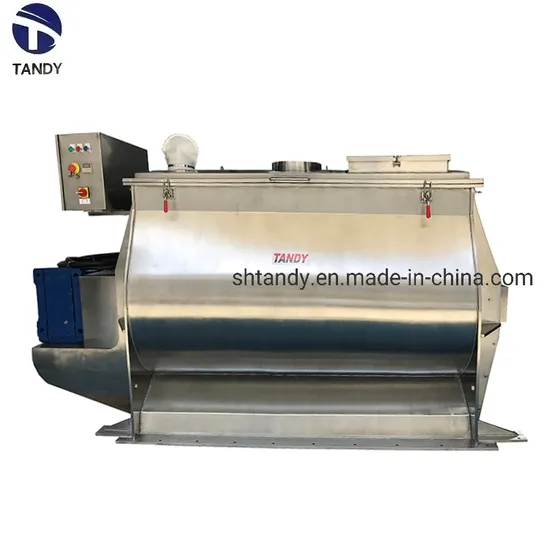

Paddle mixer description:
The single shaft paddle mixer is suitable use for powder and powder ,granule and granule or add a little liquid to mixing , it is widely applied in nuts ,beans ,fee or other kinds of granule material ,inside of the machine have different angle of blade thrown up ther material thus cross mixing. Features of paddle mixer:
1. Rotate reversely and throw materials to different angles , mixing time 1-3mm .
2. Compact design and rotated shafts be filled with hopper , mixing uniformity up to 99% .
3. Only 2-5mm gap between shafts and wall , open-type discharging hole.
4. Patent design and ensure the rotating axie & discharing hole w/o leakage.
5. Full weld and polishing process for mixing hopper, w/o any fastening piece like screw , nut.
6. The whole machine is made by 100% stainless steel to make its profile elegant except bearing seat.
