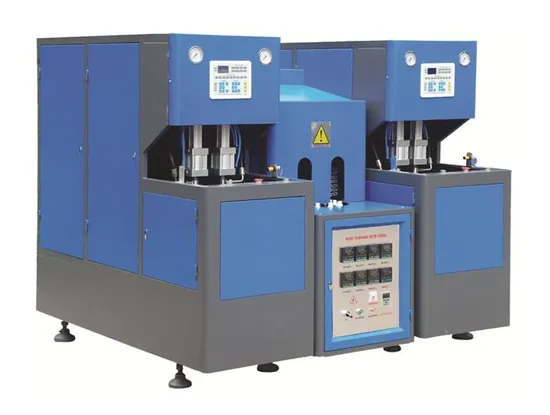

0.3-2.0 L Pet Bottle Molding Blower

Product Description

0.3-2.0 L Pet Bottle molding blower
The machine can be designed according customer's specifications and all the main parts can be chosen by customer. Normally we use some brands famous in the world.
We have standard fittings supply system to ensure the equipment run steadly and reduce the maintenance cost.
MMI disign, linear structure, easy to operate. Changing moulding is very easily and fast.
The machine can be conected to the automatic production line or setting in other workshop out of the production line
specifications :

It em	Model	SD-8Y	SD-A4	Re mark
Type	Adaptation costumer	Semi-automatic	Automatic
Production Capacity	Depend on design	1200-1800 PCS per hour	3200-4200 PCS per hour
Bottle	Max of bottle volume	2000ML	2000ML
	Material	PET	PET
mould	Number of cavity	2 cacities	4 cavities
Main machine power	Electrical source power	380V 3 phase 50HZ	380V 3 phase 50HZ
	Rated power	1.75KW	30KW
Air source	LP air compressor	/	2.0m3/10Mpa*1set
	HP air compressor	1.2m3/min 30Kg	1.2m3/30Mpa*3set
	Air dryer	21.0m3/min 30Kg	2.0m3/30Mpa*1set
Size	L*W*H	1600*600*1610mm	4200*1800*2000mm
	Weight	500kg	4200kg
Blowing cylinder	FESTO	Germany	Germany
Valve	FESTO	Germany	Germany
Cylinder	SMC	Japan	Japan
PLC	LG	South Korea	South Korea
HMI SCREEN	LG	South Korea	South Korea
Switch	OMRON	Japan	Japan

---
