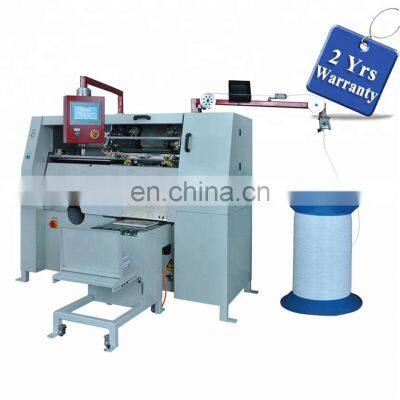

UT420S Fully Automatic Single Loop Wire Forming and Binding Machine O ring notebook calendar former and binder
Videos
Video demonstration only for reference
Video 01: /watch?v=4qjvl1Iexm8
Video 02: /watch?v=Hhyn-_EnSjI
Product Description
Features:
1, Widely used to bind books, notebooks and calendars by single wire
2, Automatic wire spiral forming, automatic cut up and close up, automatic book, automatic book collection.
4, Quite efficient and reliable
5, It is easy to change the mold to fit different type of notebooks.
Parameters:
Work Speed:500-1200pcs/hour
Binding Size: 75-420mm
Wire Type: Nylon Coated Wire
Wire Diameter: 8-32mm
Power: 1.5Kw, 1 phase, 220V, 50HZ
Dimension: 1900*700*1600mm
Weight:400Kg
Wire Specification:
Diameter(mm)
| Line Diameter(mm)
| Aperture(mm)
| Binding thickness(mm)
|
8
| 0.7-0.8
| Φ3.0
| 5
|
10
| 0.7-0.8
| Φ3.0
| 7
|
12
| 0.8-0.9
| Φ3.5
| 9
|
14
| 1.0-1.1
| Φ4.0
| 11
|
16
| 1.0-1.1
| Φ4.0
| 12
|
18
| 1.0-1.1
| Φ4.0
| 14
|
20
| 1.1-1.2
| Φ4.0
| 15
|
22
| 1.1-1.2
| Φ5.0
| 17
|
25
| 1.1-1.2
| Φ5.0
| 20
|
28
| 1.2-1.3
| Φ5.0
| 23
|
32
| 1.2-1.4
| Φ5.0
| 26
|
Detailed Images
Our Services
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1. What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min
B: Paper thickness in GSM
C: Some photos of your finished products
2. Are you a manufacturer
Yes we have been manufacturing such machines over 10 years and also we are a professional exporter.
3. What about the payment term?
Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents.
4. What is the warranty?
Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5. What is your aftersale service?
Any questions will be responded within 24 hours by email, skype, phone call or whatsapp. In addtion, we have professional engineer available for overseas service.
6. What is the delivery time?
Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
