Product Description
Product Description

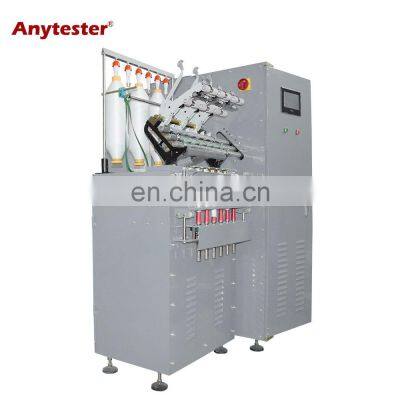

Product DescriptionAT206 Laboratory Ring Spinning Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT206 Laboratory Ring Spinning Machine is used to spin yarn from roving by ring spinning method. FeaturesEasy to operateTouch screen & PLC control;Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen; Frequency converter of high efficiency to control roll speedSkilled DesignPressurizing system :spring pressure cradleThree-up-three-down drafting structureSpecificationModelAT206 Number of spindles6Fiber typeCotton or cotton-type chemical fibersTwist rangeCustomized for woolDraft range50~250twists/meterOutput capacityApprox. 2~50Roll diameter0.25~0.5kg/hRing diameter¢25mmSpindle speedΦ38 ~ 45mmTwist directionMax. 12000rpmPower supplyZ or S, settable Related Products Packing & DeliveryPackagingSize(cm)73 (L) * 72 (W) * 168.5 (D)Weight260 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting usLily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype 1933039910@qq.comWechat+86 180 5517 3820Our CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most product
>>
