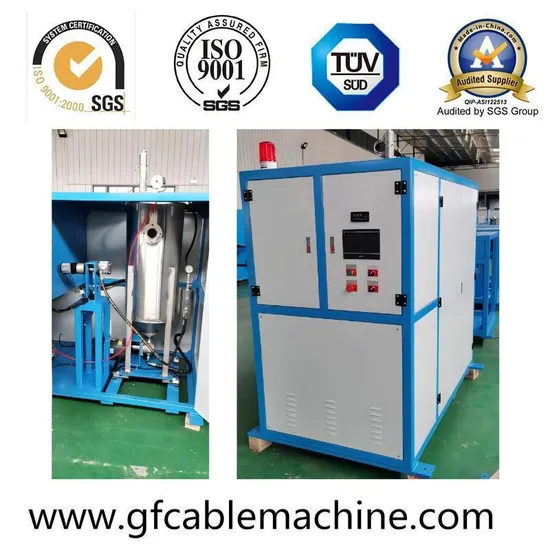

Secondary Coating Jelly Filled Production Line for Optical Cable/Loose Tube Fiber Extruder

US$30,000.00-99,000.00 1 Set (MOQ)

Basic Info.

Model NO.
WRK-SG-50
Type
Cable Extruder
Plastic Processed
PVC
Product Type
Granulating Extruder
Feeding Mode
One Feed
Assembly Structure
Separate Type Extruder
Screw
Single-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Certification
ISO
Condition
New
Usage
Loose Tube
Loose Tube Diameter
1.8mm/2.0mm/2.2mm/2.4mm
Extrusion Material
PBT/PP
Machine Size
35m
Payment Term
T/T, L/C
Structure Speed
500m/Min
Service
Technical Support, Training
Motor
Siemens
System
PLC+Ipc Control
Power
Three Phase Five Line 380V 50Hz
Transport Package
Plastic Film+Wooden Package
Trademark
wirecan
Origin
China
HS Code
8477900000
Production Capacity
4set Per Month

Packaging & Delivery

Package Size
320.00cm * 160.00cm * 200.00cm
Package Gross Weight
500.000kg

Product Description

Optical Fiber Secondary Coating Extrusion Line
1.Equipment application :
The model is mainly used for extrusion prouduction of 1-12 core optical fiberd chinese pine bundle tube,and extrusion material is suitable for modifying benign PP and PBT.
2.Technical parameters:
cores No of optical fiber 12 cores
Pay-off tension of optical fiber 0.4-1.5N±0.05N
Specification of optical fiber pay-off reels ø236×ø160×ø108
Strecture speed 500m/min
hoter water temperature 75°c ± 2 °c
take-up tension 2.5-6.5N
production speed 5-220m/min(ø2.0mm PBT tube bundling),5-200m/min(ø3.0mmPBT tube bundling)
excess control 0-3‰ ± 0.2 ‰
Line length ≤35M
specification of take-up reels PN800mm
fiber excess attenuation <0.02db/km
Power about 70KW

3. Machine main electric brand
Motor: Dongguan Motor
Transducer: American Emerson transducer
Temperature controller: Omron Brand PID Smart type
Man-Machine interface: 10.2 inch color
PLC and Control Module: Siemens
Screw and Barrel: Produced by jinhu Company.
Bearing: Japan NSK or other same quality brand
Low voltage electrical parts: Adopts SIEMENS, OMRON, brands,etc. Production Process:
