High Quality Customized Extrusion Blow Molding Plastic Jerrycan Use Making Machine

Product Description

Product Description

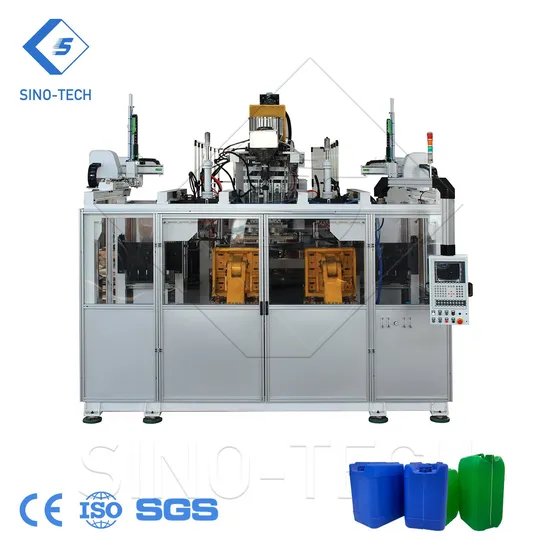

High Quality Customized Extrusion Blow Molding Plastic Jerrycan use making machine
STSII-15L series 5L-15L high speed Jerrycan, oil drum blow molding moulding Machine is Suitable for making 5~15L PP PE HDPE LDPE PVC,PETG... Oil Barrel.
Applications: food pack containers, plastic oil drum, chemical bottles, household ...
Product Description
STSII-15L High speed Continous Extrusion Blow Molding MachineMachine Features 1. Special design for 5L 15L PE/PP Jerrycan bottles...2. Die head design with easy to change the material and color.3. Latest mold changing system, much faster and easier.4. Optimized hydraulic system, proportional pressure control5. Adopts two pull-rod type closing-mold devices by rack and pinion system. The large setting platen is suitable for various sizesof molds6. Simple structure in linear type, easy in installation and maintenance.7. Servo system8. With robot arm take out the finished product9. One to three multi-layers choose10. Hydraulic and electric hybrid power design, makes the machine run more speed and more energy-saving
11. Full Servo system control.
12. Simple structure in linear type, easy in installation and maintenance.
13. With a robot arm take out the finished product.
14. Single die-head or multi-diehead can be choosen and Single station.
Product Parameters

Technical Specification		STS-15L/STSII-15L Continous
		Extrusion Blow Molding Machine
Specifications		STS-15L	STSII-15L
Max container capacity	L	15	15
Machine dimension(L*W*H)	M	3.6*6*3.5	6.1*4.1*3.6
Total weight	T	13	16
Die head
Number of die head	SET	1,2,3,4	1,2,3,4
Number of heating Zone	Zone	4	4
Die head heating power	KW	16	9
WDS system control	Points	B&R 100/300 points	B&R 100/300 points
With View Strip for option
Extruder system
Main Screw Diameter	MM	75	90
Screw L/D ratio	L/D	25	25
Melting capacity	KG/H	120	200
No. of Heating Zone	Zone	3	4
Heating power	KW	20	24
Extruder motor Power	KW	30	55
Clamping Unit
Single Station
Max Mould Size(W*H)	MM	680*500	680*500
Max space between Platen	MM	200-660	200-660
Platen Size	MM	480*560	480*560
Clamping unit	KN	270	270
Mould thickness	MM	305	305
Control System
Control System	Brand	B&R (Austria)	B&R (Austria)
Wall thickness control	Brand	B&R 100/300 points	B&R 100/300 points
Power
Total Power	KW	83	90
Air pressure	MPA	0.8	0.8
Air consumption	M3/h	2	2
Water pressure	MPA	4	4
Cooling Water consumption	M3/h	15	15
Average energy consumption	KW	45	70

Detailed Photos
Application
Customize the products according to your requirement

Company Profile
Packaging & Shipping
Customer Feedback
FAQ
Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
