High Quality Conventional Lathe with 50 Years Experience Manual Ordinary Lathe

Product Description

Product Description

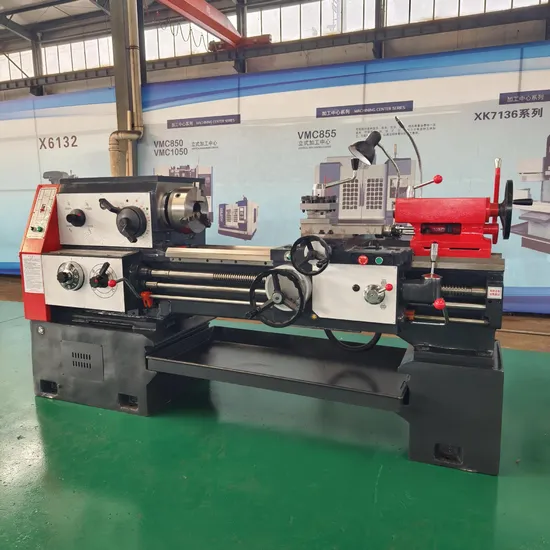

CA6140/6240/6150/6250 Horizontal Manual Lathe Metal Turing Lathe Machine
These lathes are suitable for kinds of turning, such as internal and external cylindrical surface turning, cutting of various metric, Whitworth, module diametrical pitch threads as well as taper turning, facing, drilling broaching for oil grooves and keyways, etc. The workpiece produced on the machine can achieve the working accuracy of grade IT6-7 and surface roughness Ra 1.6um.
Gap-bed lathes are especially suitable for flat and odd workpieces.
Owing to increasing the bore of the spindle the lathes are more convenient to machining shaft parts and suitable for kinds of mechanical working shops.
Product Parameters

Specification	Unit	CA6140	CA6240	CA6150	CA6250
Max. swing over bed	mm	400	400	500	500
Max. length of workpiece	mm	650/750/900/1000/1400/1500/1900/2000
Max. Swing over carriage	mm	210	210	300	300
Distance from spindle center to bed plane guide rail	mm	205	205	250	250
Spindle Bore	mm	52
Spindle taper		Mohs 6 / A6
No. of longitudinal feed	kind	64
Longitudinal feed range - normal	mm/rev	0.08-1.59
Longitudinal feed range - fine	mm/rev	0.028-0.054
Longitudinal feed rang - coarse	mm/rev	1.71-6.33
No. of cross traverse feed	kind	64
cross traverse feed - normal	mm/rev	0.04-0.79
cross traverse feed - fine	mm/rev	0.014-0.027
cross traverse feed - coarse	mm/rev	0.86-3.16
Longitudinal rapid movement speed of tool post	m/min	4
Rapid traverse speed of tool post	m/min	2
Max. stroke of upper tool holder	mm	140	140	140	140
Max. horizontal stroke of tool holder	mm	320	320	320	420
Turret turntable rotation angle	-	±90°
Size of tool shank	mm	25×25
Vertical distance between center line of spindle and button of tool	mm	26
Tailstock spindle diameter	mm	75
Taper of tailstock spindle center hole	-	Mohs 5
Max. stroke of tailstock spindle	mm	150
Screw pitch	mm	12
Range of metric threads	mm	44 kinds, 1-192
Range of Inch threads TPI		20 kinds, 2-24
Range of moudle threads	mm	39 kinds,0.25-48
Range of diametral threads DP	DP	37 kinds,1-96
Bed rail width	mm	400
Bed rail hardness	RC	RC52
Main motor	kW	7.5
Net weight(MM)	750	1990		2060
	1000	2070		2140
	1500	2220		2290
	2000	2570		2640
Size(length*width*height)MM	750	2418*1000*1267		2418*1037*1312
	1000	2668*1000*1267		2668*1037*1312
	1500	3168*1000*1267		3168*1037*1312
	2000	3668*1000*1267		3668*1037*1312

Detailed Photos

Packaging & Shipping
The lathe machine will be packed with a metal base and plywood case, suitable for all kinds of international transportation, such as by sea, air, etc.
Delivery time:7-15 days, fast to deliver
After Sales Service
1. The Operation Manual will be sent with the machine.
2. The spare parts will be provided freely during the warranty period.
3. The 24-hour online Service Team will help you solve the problems that you meet!
4. we also provide the after-service with video calls, videos, phone calls, online meetings, etc., to ensure you can use the machine better.
Related products
Company Profile
Henan Rowdai Machinery Equipment Co., LTD we are located in Zhengzhou city, Henan Province. We are specialized in the manufacture of CNC machine center, Lathe machine,CNC Lathe Machine, Milling Machine, CNC Milling Machine, Grinding Machine, Band Saw. Our products are widely used in the auto,mould,construction machinery, aviation, high speed railway and energy industry. We have our own share in many markets, and the products have been widely exported to Europe, America, Australia, Middle East, Southeast Asia, and Africa and so on.
Our workers are all have over 10 years working experience with Machine tools, we have professional inspector team, Focusing on addressing customers' needs, we aim at quality machines and perfect after-sales services to the customers.What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
FAQ
1:How can I choose the most suitable machines?A: Please tell me your specifications, we can choose the best model for you, or you choose the exact model. You can also send us the product drawing, we will choose the most suitable machines for you.2: What about the quality of the machine? And after-sales service?A: Our machine warranty period is 1-2 years, and we provide free technical service.3: What are your trade terms?A: EXW, FCA, FOB, CFR, CIF, DDP etc. are all acceptable.4: What are the Payment Terms?A: T/T, 30% initial payment when ordering, 70% balance payment before shipment;5: What's the MOQ?A: 1 set

---
