CE Approved 1lyd Mounted Disc Plough for Sale

Product Description

Product Description

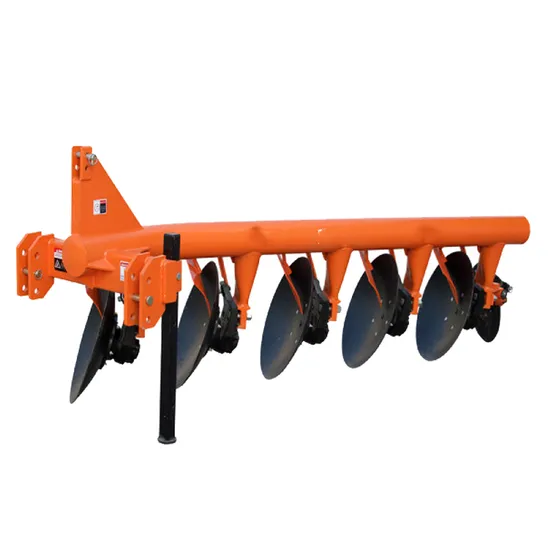

Disc plow, designed for plowing light, medium and heavy soils, are well prepared for operation on rocky soil, meadows and sandy soils, up to 25 cm deep. The structure of the plow allows optimal operation even in the cultivation of land covered with an abundance of plant remains, compact and very humid soils that usually clog the mouldboards of normal plows The discs consist of boron steel with a diameter of 660 mm Robust support group In addition, to adapt to different soil conditions, each disc is equipped with an eccentric pivot angle adjustment. These plows are equipped with support wheels with a diameter of 480mm and a width of 165mm Working depth adjustment up to 25 cm. These disc plows are suitable for tractors with a power of 41 HP
Product Parameters

MODEL NO	DISCS QTY(PC)	DISC DIAMETER(MM)	Working Width(MM)	Working Depth(mm)	Weight(kg)	Matched Power(HP)
1LYD-230	2	660	500-600	250	300	50-60
1LYD-330	3	660	750-900	250	390	75-90
1LYD-430	4	660	1000-1200	250	490	90-100
1LYD-530	5	660	1250-1500	250	575	100-120

Our Advantages
**ADVANTAGES:
***Mounted Disc Ploughs are well designed to work in all types of soils & can be used easily in hard soils & in rocky & rooted areas.
***An adjustable and spring-loaded furrow wheel/coulter disc takes care of the side draft and makes sure that the implement moves smoothly.
***Available with the option of high quality Universal Boron steel discs that last much longer than regular steel discs.
***Heavy duty pipe frame with high ground clearance makes it easy for the plough to work in fifields with a lot of crop residue.
***Especially useful in hard and dry trashy land, stony soil conditions and in soils where scouring is a major problem.
***Highly adjustable disc penetration & disc position angle for use in tough and soft soil.
***Heavy Duty Colter with Shocker
***Heavy Duty Spindle Assy. More Flexible Scrapper
***Heavy Duty Drawbar Compatible with a variety of tractors.
***Available in 2, 3, 4 & 5 bottom confifigurations.
