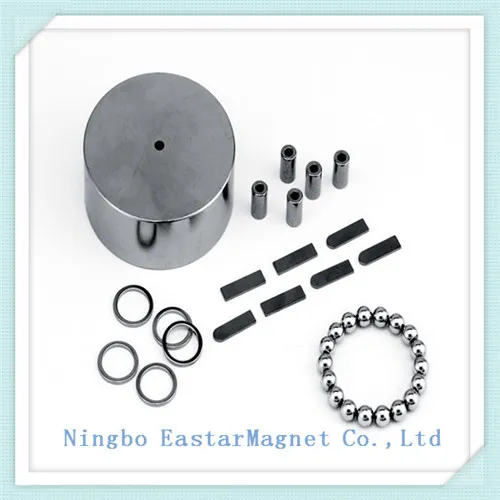

N35-N52 NdFeB Cylinder Magnets with Nickel Plating

Product Description

N35-N52 Ndfeb Cylinder magnet with nickel plating:
1. Materials: Neodymium-Iron-Boron
2. Shape: Disc, Disk, Stick, etc...
3. Certificate: TS16949; ISO9001: 2002; SGS
NdFeB Disc Magnet:
- N35-N52, N48M, N48H, N48SH, N38UH, N38EH...
- Max temperature: 80-230'C
- Dimension range: 1-280 mm
- Guaranteed quality
Magnet Parameter

Parameter	unit	Standard Data
Curie Temperature(Tc)	ºC	310-380
Maximum Operating Temperature(Tw)	ºC	80-200
Hardness	Hv	620
Electrical Resistivity	Ω.CM	1.8X10-4 ~2.0X10-4
Density(D)	g/cm3	7.5~7.65
Recoil Permeability	µ rec	1.05
Magnetization Field Strength(Hs)	KOe	> 30
	KA/m	> 2400
Bending Strength	Mpa	295~345
Temp. Coefficient of Br (aBr)	%/ºC	-0.11~ -0.12
Temp Coefficient of Hcj (aHcj)	%/ºC	-0.5~ -0.7

Product specifications:
1. NdFeB Permanent Magnets with different grades of: N35, N38, N40, N42, N45, N48, N50, N52(M, H, SH, UH, EH) etc.
2. Working temperature for NdFeB Permanent magnets: From 80 centigrades to 230 centigrades.
3. Can be magnetized according to the requirements of clients.
4. Coatings: Ni, Zn, epoxy, gold, silver, Cu and so on(as per the requirements).
5. NdFeB magnet has super strong magnetic force and high intrinsic coercive force.
6. With precise tolerance.
Application for NdFeB magnet:
Magnetic separator, Sensors, Wind generators, Vibration motors, DC motors, Servo motors, Linear motors, VCM, MRI, Loudspeakers, Linear actuators, drives, toys, bags, household appliances, microphone parts, transmission equipments...
Remarks:
1, HHMAG has years' experiences in magnets producing and we can Produce magnets acccording to your own specifications or designs.
2, We deliver goods in time and have excellent after-sale service.
3, Commited to customers with our best service and with the most that we1. Magnet: Neodymium magnet
2. Characteristics:
Super strong Br resident induction.
Excellent demagnetization resistance capability.
3. Surface Treatment Method:
Black Nickel, Chroming, Copper, Epoxy, Gold, Nickel, Nickel+Epoxy, Nickel+Sn, Passivation, Zinc, phosphating
4. Applications of Neodymium Magnets:
AC Motors, DC Motors, servo motors, step motors
Computer rigid disc drives
Magnetic Separators
Magnetic resonance imaging
Speakers & earphones
Medical care machines
Company Profile
Test Equipment & Workshop
• Demagnetization Curves & Outgoing Inspection Report for each shipment.

Packaging & Shipping
Standard Packaging
• Vacuum packaging for all Neodymium magnets and Neodymium magetic assemblies.
• Shielding box and wooden box to protect the Neodymium magnets during shipping.
Shipping Methods
• Contract price with FedEx, DHL, UPS and TNT to minimum your shipping cost.
• Experienced shipping forwarder for Ocean and Air shipments.
FAQ

---
