US$10,000.00-30,000.00
|
1 SET
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.003mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001, SGS
Display
5 Axis Digital Display
Power Supply
Anti-Electrolytic Power Supply
Z Axis Driven
Motor Driven
Operation System
Bq Operation System
Transport Package
Export Standard Wooden Packing
Specification
1700x1200x2000mm
Production Capacity
3000 Sets/ Year
Product Description

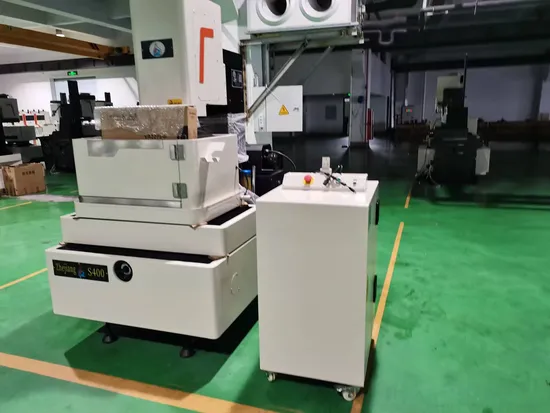

Leading CNC Wire Cut EDM Manufacturer in China, Providing customer High End EDM machines with Fast cutting speed.
Customers spread in aerospace, electronic,aotomative, 3D printing, militay and defense,mold and tooling industry.
Products export to Europe, Russia, South America, Southeast Asia, Middle East, etc
Parameters | LZ400 | LZ600 |
Worktable size(mm) | 735x460 | 920x540 |
X/Y travel(mm) | 400x320 | 600x450 |
Max workpiece size(mm) | 800x500 | 1000x650 |
Max cutting thickness(mm) | 300 | 300mm |
Max load weight(kg) | 500 | 500 |
U/V travel(mm) | 36x36 | 36x36 |
Max cutting taper | ±9°/100mm | ±9°/100mm |
Control type | X Y Servo,UVZ hybrid motor | X Y Servo,UVZ hybrid motor |
Z transmission | Numerical control | Numerical control |
Simultaneously Controlled axes | X Y U V-4 Axis | X Y U V-4 Axis |
Wire diameter(mm) | Φ0.1-Φ0.2 | Φ0.1-Φ0.2 |
Wire speed (m/s) | 1-11.4 | 1-11.4 |
Reposition accuracy(mm) | ≤±0.003 | ≤±0.003 |
Max cutting speed (mm2/min) | ≥300 | ≥300 |
Roughness/Ra(um) | 0.7-1.4 | 0.7-1.4 |
Water tank volume(L) | 120 | 120 |
Filtering method | 3 layer filtration | 3 layer filtration |
Power supply | Three phase 380V AC/50Hz | Three phase 380V AC/50Hz |
Control system | Baqi system | Baqi system |
Total power consumption(kw) | 1.6 | 1.7 |
Max machining current(A) | 10 | 10 |
Machine gross weight(kg) | 1500 | 2000 |
Machine size(mm) | 1180x1608x2080 | 1580x1900x2080 |
Top-bottom abnormity cutting | Yes | Yes |
Remote control and digital management function:
Our machine integrates data management, information mornitoring and other digital functions. Users can operate monitoring software on the remote servicer in real time to monitor each machines working status, processing progress, to arrange work high efficiently.
Standard Configuration:
1) Win10 System with BQ control System(own R&D),dual CPU
2) HT300 Casting Machine Body, two times heat treatment, prevent deformation effectively.
3) 5 axis digital display and Z axis motorized freely drive up and down.
4) Pulse and anti-electrolytic power supply, to enhance cutting accuracy.
5) Automatic center finding, edge finding
6) XY servo motor , 5 axis digtal control
7)High precision linear guide way
8) High precision ball screw, to ensure high accuracy
9) Imported high precion bearings, to keep durable mechnical accuracy
System functions:
BQ series medium wire cut EDM adopts computer control, X,Y,U,V,4 axis simultaneously controlled, the discharge parameter can be automatic selected and control. It is programmed with internationally universal ISO code.The main system functions are as following:
mirror machining | proportionally scaling |
conventional taper cutting | top-bottom abnormality cutting |
single-stage machining | 4 axis simultaneously cutting |
program editing | automatic wire radius compensation |
automatically machining condition convert | simulation check |
return halfway | pitch compensation |
automatic edge finding | automatic center finding |
wire alignment | graphic real time tracking and check |
subprogram calling | unmanned processing(power-off after finishing) |
back to the origin point and suspension point | wire feeding speed adjustment |
Full travel reposition accuracy ≤ ±0.003mm
Measured by Laser Interfermeter. Reverse error : 0.0009mm System deviation: 0.0016mm Average deviation: 0.0015mm Accuracy: 0.0016mm Repeatability: 0.0009mm R+(single repeatability): 0.000mm R-(single repeatability): 0.000mm A+(single accuracy): 0.0016mm A-(single accuracy): 0.0014mm
Delivery 3000 sets a year:
Contact us for more details, you will get reply within 24 hours .
>>
