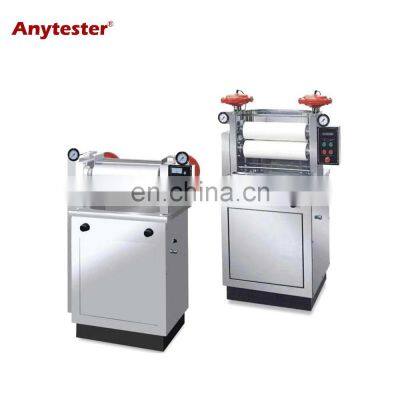

Product DescriptionAT274 Series Pneumatic Heavy Duty Padder (original model HY0130) is the padding mangle for all dyeing, printing, finishing and padding processes, widely used in dyeing and finishing plant and manufacturer of and dyes.Nowadays customer has a high requirement on textile quality, not only the precise color but also the comfortable hand-feeling. You can use this padder to simulate the real production environment and get high repeatability sample. Also you can use this machine to develop more dyeing technology such as fireproofing, dust-resistant, oil-resistant, water-repellent, breathable etc. This padder is an ideal solution to cut down the waste of time and invest due bad dyeing technology.SpecificationModelAT274AAT274BTypeVerticalHorizontalRoller length420mmRoller diameter130mmNBR Rubber hardness 700shoreRoller speed0 ~ 18RPM adjustableMax. pressure0.6MPaPressure division0.01MPaPower supply220V, 50HzDimensions 900*800*1230mm900*650*1200mmWeight 160kg160kgFutures★ High quality NBR rubber and stainless steel ensure a long time life, also have a good appearance★ Use two separate pneumatic cylinders to drive the membrane to provide uniform pressure to the roller.★ NBR rubber and pressure-absorbing rate 20 ~ 110% make the machine can be widely used for most textile★ Better safety system. It's equipped with Knees touch stop button and emergency stop button on the control panel. The motor has reverse function, once the machine stop by safety button, the motor will turn back.★ It equipped with cleaning spray gun to clean the padder, make it expediently★ Removable liquor tank make it easy to change and clean.Packing & DeliveryPackagingSize900*800*1230mm/900*650*1200mmWeight160kgPackaging DetailsThe normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.PaymentPayment ItemT/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIF30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time7~10 days after receiving payment for one containerRelated ProductsHY0143 High Temperature Dyeing MachineHT-3 Lab Bobbin Yarn Dyeing MachineAT293 Lab Sized Yarn Dyeing Machine AT277 Sample Size Garment & Ribbon Dyeing MachineOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986
>>
