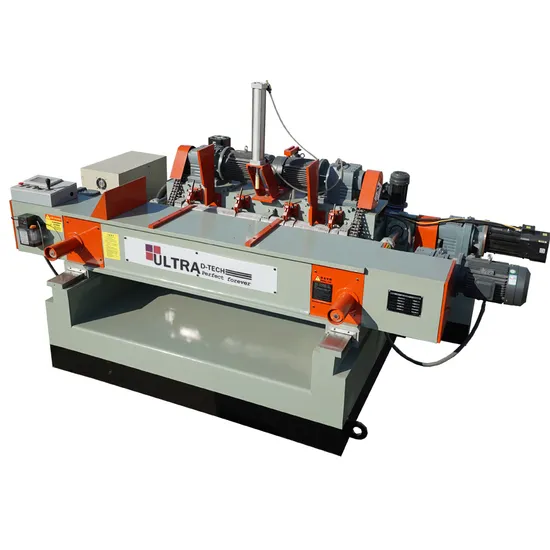

Wood Log Veneer Peeling Machine for Making Plywood Peeling Machine Manufacturer

Product Description

Product Parameters

Max log length	Max diameter of log	Left piece Min. diameter	Peeling thickness range	Power
1500mm	600mm	24mm	0.4-3mm	46.5KW
Roller diameter	Reducer model	Speed	weight	Control mode
125mm	R87 harden gear	40-120 m/min	7200kg	frequency converter / PLC

↑↑↑ ↑↑↑

running guide rail CNC cutting Quenching increases the hardness Unlimited service life Avoid the wear and tear of the common lead screw,so to avoide machine operation deviation,veneer width and thickness problems

Total close oil immersion guide screw After adding lubrication oil can maintain one year,greatly save lubricating oil.And dust and veneerchips will not enter the lead screw,then will not cause machine precision reduction.

Automatic hydraulic installation blade
more convenient blade replacement.
Save you more time to change the knife.
Change the thickness of the veneer, automatically adjust the height and gap of the knife together. We use servo motor and inverter to make the adjustment more accurate.
Guide rail adjusting rod, there are two kinds of automatic adjustment and manual adjustment design (picture is manual adjustment). Specially designed for different wood with different wood density, to ensure that the veneer surface is smoother and the thickness is more uniform when the log peeling.
Detailed Photos
Packaging & Shipping
Certifications
