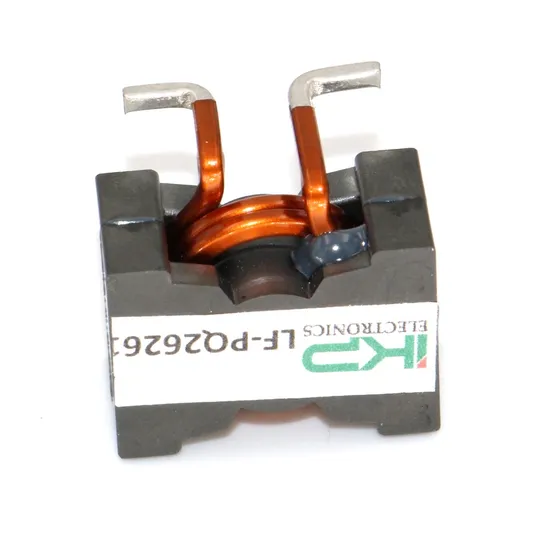

Flat Wire Pq Core High Frequency Transformers for DC-DC Converter

Product Description

Electrical characteristics (temperature: 25 ±50cm, RH: 65±1RH) 1) Inductance (at 10kHz 0.05V): L2-7 = L3-6 = 6.8mh +50%/-30% 2) Resistance: DCR2-7 = DCR3-6=250mΩ maximum 3) Hi-pot: N1 to N2: 1500V AC, 3mA, 60s

Inductance		DCR	SRF	Isat(A)			Irms(A)						ºC
±10%	(mOhms)		typ		10%	20%		30%		20		40
Part number (μH)		nom max (MHz) drop drop drop								rise		ºCrise
IKP2915L-1R5KL	1.5	1.5	1.65	60	100 >100 >100					20	30
IKP2915H-2R2KL	2.2	1.86	2.05	40	100 >100 >100					20		30
IKP2915L-2R2KL	2.2	1.5	1.65	50	82.0 84.0			84.8		20	30
IKP2918H-3R3KL	3.3	2.6	2.86	40	91.0 92.5			93.6		20		28
IKP2915H-3R3KL	3.3	1.86 2.05		30	62.0 66.9			68.4		20		30
IKP2915L-3R3KL	3.3	1.5	1.65	40	48.0	54.0		57.0		20	30
IKP2918H-4R7KL 4.7		2.6	2.86	25	59.0	61.2		62.4		20		28
IKP2915H-4R7KL	4.7	1.86 2.05		20	42.0	48.0		50.1		20		30
IKP2915L-4R7KL	4.7	1.5	1.65	30	33.0	36.9		39.0		20		30
IKP2918H-6R8KL	6.8	2.6	2.86	25	42.0	45.0		45.9		20		28
IKP2915H-6R8KL	6.8	1.86	2.05	20	30.0	34.5		36.2		20		30
IKP2915L-6R8KL	6.8	1.5	1.65	25	22.0	26.0		27.8		20		30
IKP2918H-100KL	10	2.6	2.86	20	28.0	31.2		32.1		20		28
IKP2915H-100KL	10	1.86	2.05	15	18.0	21.5		23.4		20		30
IKP2915L-100KL	10	1.5	1.65	20	13.0	16.2		17.6		20		30
IKP2918H-150KL 15		2.6	2.86	16	18.0	21.2		21.9		20		28
IKP2915H-150KL	15	1.86	2.05	12	11.5	14.0		15.2		20		30
IKP2915L-150KL	15	1.5	1.65	15	7.5	9.8	11.0			20	30
IKP2918H-220KL	22	2.6	2.86	15	12.0	14.0		15.0		20		28
IKP2915H-220KL	22	1.86	2.05	10	7.0	8.6		9.6		20	30
IKP2915L-220KL	22	1.5	1.65	10	4.5	6.0	6.8		20		30
IKP2918H-330KL 22		2.6	2.86	10	7.0	8.7		9.6		20	28
IKP2915H-330KL	22	1.86	2.05	8	4.0	5.1		5.9		20	30
IKP2915L-330KL	22	1.5	1.65	7	2.0 2.6 3.3				20 30

---
