Basic Info.
Product Type
Extrusion Molding Machine
Feeding Mode
Multiple Feed
Assembly Structure
Integral Type Extruder
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Punching Mode
Mechanical Vacuum Double Hole
Packing Method
Baling Press
Transport Package
Wooden Box
Production Capacity
100kg/Hr
Packaging & Delivery
Package Size
250.00cm * 20.00cm * 30.00cm
Package Gross Weight
5000.000kg
Product Description
Product Description

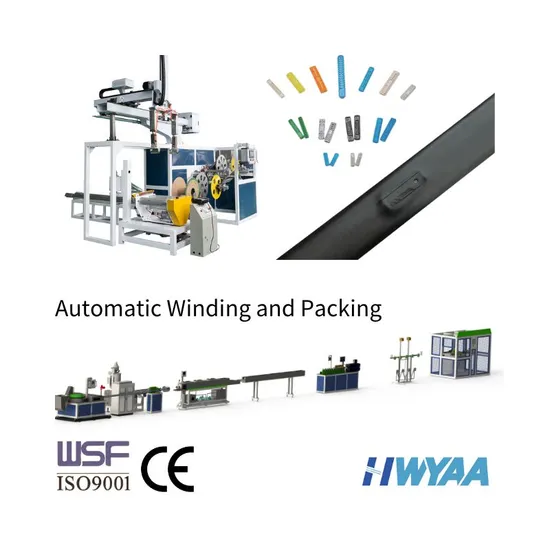

PE extruder flat drip tape machine of China factory with fully automatic system
This flat dripper irrigation tape production line is our new generation of high-speed thin-wall drip irrigation tape production line. It's used to produce flat type drip irrigation tapes, which are widely used to grow field crops (such as cotton), fruits, vegetables, trees, flowers and more.
Product Parameters
| No | Items | Specifications |
| 1 | Tape Diameter | Φ16mm |
| 2 | Tape Wall Thickness | 0.15-0.4mm |
| 3 | Single Screw Extruder A | SJ-90/36 |
| 4 | Single Screw Extruder B | SJ-25/25 |
| 5 | Design production Speed | 320m/min (200/300mm spacing distance) |
| 6 | Central Line Height | 1000mm |
| 7 | Dripper Identifying Speed | 500 pcs/min |
| 8 | Dripper Spacing | 100mm-1000mm |
| 9 | Punching Speed | 2000 pcs/min |
| 10 | Punching Method | Mechanical punching |
| 11 | Tape Roll Length | 500m-2500m |
| 12 | Total Installed Power | 135Kw |
| 13 | Max Extruding Capacity | 240Kg |
| 14 | Size of the Line (L×W×H) | 25m*2m*3m |
| 15 | Total Line Weight | About 6000kg |
Components
| No. | Name | Specification model | Quantity |
| 1 | Dripper screening device | 1.5w | 1 set |
| 2 | Dripper conveyor | 750w | 1 set |
| 3 | Extruder A | SJ-90/36 | 1 set |
| 4 | Extruder B | SJ-25/25 | 1 set |
| 6 | Die mould | Φ16 | 1set |
| 7 | Vacuum Calibrator | 4.0m | 1set |
| 8 | Cooling water tank | 3m | 1set
|
| 9 | Industrial chiller | 20P | 1set |
| 10 | Tractor | 2.5kw | 2sets |
| 11 | Punching device | 2000pcs/min | 1set |
| 12 | Double station automantic cutting winding packaging changing roll machine | 320m/min | 1set |
| 13 | Electrical control system | Siemens Control System | 1set |
| 14 | Inspector ( with Alarm function) | Video identification system | 1 set |
Flat emitters conveyor
| Items | Specification |
| Dripper identify | Photoelectric probe |
| Spacing Set Range | 100mm-1000mm |
| Feeding device motor | 0.55kw |
| Dripper select motor | 1.5kw Frequency Control |
| Transport motor | 0.75Kw servo motor Siemens |
| Dripper transport speed | 2000 pcs/min |
Extruder and pipe extruding nose
| Item | Specification |
| Screw | 90mm |
| 36/1 |
| 100r/min |
| 38CrMoAla |
| FIVE STAR |
| 950Hv |
Barrel
| 6 heating zones |
| 38CrMoAla |
| FIVE STAR |
| 940Hv |
| Gear Box | 20CrMnTi |
| Forging,carburizing,quenching,gear grinding |
| HRC58-62 |
Power
(Brand:
Italian phase) | 90Kw |
| 30Kw |
| 6X0.24Kw |
| Capacity | 240Kg/h |
| Feeding machine | 300Kg/h |
| 4.8kw |
| Filter change | Hydraulic filter |
Co-extruder Die Head
| 40Cr |
| right-angle |
| 250mm |
| 1650w |
Vacuum calibrator
| Items | Specifications |
| Size of Tank | 4000mm |
| Material for Sizing Adjustment | copper alloy |
| Sizing Method | vacuum |
| Tank Movement Method | Manual |
| Dripper Sticking | Rubber wheel pressure |
| Drive motor | 400w servo motor Siemens |
| Vacuum pump | 1.5kw |
| Water pump | 0.75kw |
| shaping box material | Stainless steel |
Water cooling tank
| Item | Specification |
| Tank Material | Stainless steel |
| Tank Size | 3000mm |
| Cooling Method | Water immersion |
| Water removal device | High pressure air drying |
| Water pump | 0.75kw |
Industrial chiller
| model | RX-20AD |
| Refrigerating output | 60kw |
| Total power | 18.8kw |
6.Haul-off Unit
| Items | Specification | |
| Max. Traction speed | 300m/min | |
| Drive Motor Power | 2.5Kw servo motor | |
| Haul-off Roller Pattern | Roller | |
| Brands | Panasonic | |
7. Punching machine
| Items | Specification |
| Punch way | Mechanical track punching |
| speed | 2000 pcs |
| triggered | the wheeled trigger |
| Punch space | 100-1000mm |
| Punch motor | 1.0w servo motor |
| Control method | PLC Siemens |
Double station automantic cutting/winding/packaging/changing roll machine
| Items | Specification |
| Winder Style | Double station automatic winding |
| Winding speed | 300m/min |
| Drive Motor Power | 2x2.0Kw AC servo motor |
| Roll Change method | Automatic roll change |
| Roll-changing motor | 370w Three-phase asynchronous motor add Worm wheel and worm gear reducer |
| Cable way | Ball screw line |
| Cable motor | 750w servo motor |
| Tension control | Automatic control of tension |
| Meter | Electronic meter, automatic fixed-length roll cut off |
| Control method | PLC Siemens |
| Automatic unloading | 1set |
| Maximum lateral travel | 2000mm |
| Maximum vertical travel | 1500mm |
| Maximum longitudinal itinerary | 1100mm |
| Horizontal control motor | 400w AC servo motor |
| Vertical control motor | 2.0kwAC servo motor |
| Longitudinal control motor | 750w AC servo motor |
| baler | 1set |
| Pack the motor | 370w |
| rotating machine | 1.5kw |
| product size | ¢125x¢500x290 |
| Product weight | 20KG |
| Equipment size | 3900x2000x2950 |
New Arrivals
Company Profile
Laiwu Huaya Ploymer Sci.&Tech.Co.,Itd is located in High-tech Development Zone,Shandong Province.Laiwu Huaya polymer Sci.&Tech .Co.,Itd is a manufacturer integrating research &development ,design,product for plastic machinery manufacture equipment, also supplier of technology, especially in UHMWPE pipe manufacture equipment, water-saving irrigation equipment, film of greenhouse equipment, cooperate with related research institutes, always in the forefront of equipment manufacture, product research and development. We have a professional technical team and foreign trade team to provide technical support for customers and providing customers with the best quality exclusive service.
