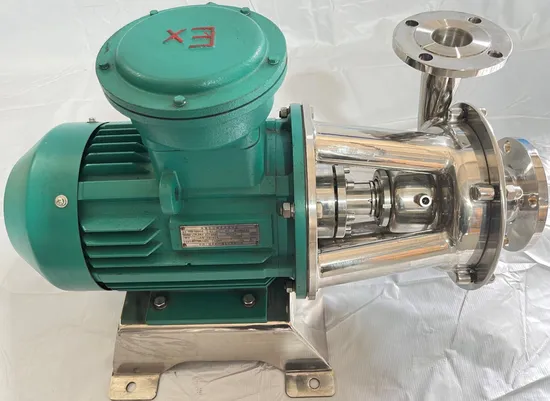

Sanitary Centrifugal Pump High Quality and Durable

Product Description

Application
GLFW series sanitary centrifugal pumps can be widely used in the transportation of various liquid materials, such as dairy products, beer, beverages, medicine, biological engineering, fine chemicals and other fields. It can not only transport ordinary low and medium viscosity solutions, but also transport solutions containing suspended solids or corrosive.
Sanitary centrifugal pumps are in the form of single-stage, single-suction, open impellers. The pump casing and impeller are carefully designed to reduce the resistance and completely eliminate the dead angle of hygiene. Due to its special structure, the flow rate of the liquid in the pump is increased, thereby improving the overall performance of the pump, and it is easy to clean and has excellent hygienic performance. It can meet product requirements for hygienic, flexible handling and chemical resistance.
Standard Design
GLFW pump consists of the following parts: standard motor, impeller, pump housing, sanitary mechanical seal. It features an in-place cleaning system (CIP) design ,Cleanable seal without dead space inside. The GLFW pump has a stainless steel housing to protect the motor and four adjustable stainless steel legs.
Shaft seal
GLFW pumps are fitted with a balanced single mechanical seal or a flushable balanced single mechanical seal. The static ring of these two mechanical seals is made of AISI316L steel embedded with silicon carbide or graphite, and the moving ring is made of silicon carbide. The support seal of the flushable mechanical seal is a durable lip seal. The mechanical seal of the GLFW10B GLFW25B pump is a double mechanical seal.
Technical parameters

	Motor Power
Size	0.55kw	0.75kw	1.5kw	2.2kw	3kw	4kw	5.5kw	7.5kw	11kw	15kw
A	112	125	140	140	140	160	190	216	216	254
B	200	225	250	250	250	320	320	400	400	400
C	100	120	125	125	125	150	160	175	180	190
E	20	25	31	31	31	31	32	32	32	32
F	50	60	71.5	96.5	73.5	88.5	72.5	112.5	95.5	96.5
H min	180	180	180	180	195	207	215	215	238	238
H max	220	220	220	220	265	277	305	305	330	330
K	110	130	160	175	208	198.5	208	233	269.5	269.5
R	50	60	79	79	91	91	110	160	130	130
T	90	100	130	130	160	160	175	193	193	193
W	180	205	248	248	272	272	322	322	372	372
Z	102	110	120	135	147	147	167	167	195	195
Weight (kg)	28	31	39	43	54	63	94	103	153	164

---
