Ksd301 Thermostat Ksd201 Bimetallic Thermostat Ksd301-R Temperature Controller

Product Description

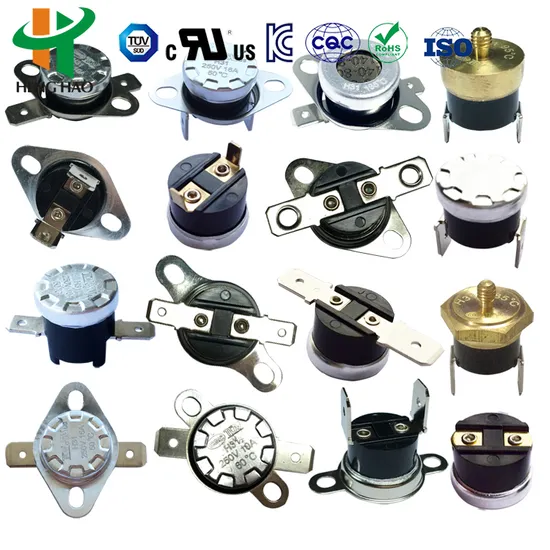

KSD301 thermostat / bimetal thermal protector / KSD301 temperature protector
KSD301 temperature protector's Principle and structure
The main principle of KSD series thermostat is that one function of bimetal discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused on of off the circuit finally. The main characteristic are the fixation of working temperature, the reliable snap action, less flashover longer working life and less radio interference.
KSD301 thermostat's specification

Voltage & Current	AC 125V max 15A; AC250V 5A 10A 15A max 16A
ActionTemperature	0~250ºC
Recovery and action temperature difference	0 to 25 degrees, or according to client's request.
Temperature deviation:	±3 / ±5 / ±10 degree or according to client's request
Circuit resistance	≤50mΩ (Initial value)
Insulation resistanc	AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle	≥100000 times
Contact type	Normally closed or Normally open
Two kinds of mounting bracket	movable or immovable
Terminal type	a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm b. Terminal Angle: bending angle: 0~90°C optional
House	plastic or ceramic.
Temperature sensor face	aluminum cap or copper head.

KSD301 Difference of auto reset type and Manual reset type
3.1. Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button. And then the contact points recover, reaching a purpose of connecting or disconnecting the circuit and restarting the circuit by manual reset. (Kindly reminder: 1.This type of manual reset thermostat can reset when the temperature declines 20 °C after snap action by pressing the reset button. And 4~6 N will be advisable; please don't use too much strength. 2. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm. )
3.2. Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point can auto reset and start working.
KSD301 bimetal thermostat's Application
It is used as temperature control for household electric appliances and widely applied in coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc.

Open temp.	Reset temp.	Open temp.	Reset temp.	Open temp.	Reset temp.
-20ºC+-5ºC	5ºC+-5ºC	95ºC+-5ºC	80ºC+-5ºC	205ºC+-5ºC	175ºC+-10ºC
-15ºC+-5ºC	5ºC+-5ºC	100ºC+-5ºC	80ºC+-10ºC	210ºC+-5ºC	180ºC+-10ºC
-10ºC+-5ºC	5ºC+-5ºC	105ºC+-5ºC	85ºC+-10ºC	215ºC+-5ºC	185ºC+-10ºC
0ºC+-5ºC	-10ºC+-5ºC	110ºC+-5ºC	90ºC+-10ºC	220ºC+-5ºC	190ºC+-10ºC
5ºC+-5C	-5ºC+-5ºC	115ºC+-5ºC	95ºC+-10ºC	225ºC+-5ºC	195ºC+-10ºC
10ºC+-5ºC	0ºC+-5ºC	120ºC+-5ºC	100ºC+-10ºC	230ºC+-5ºC	200ºC+-10ºC
15ºC+-5ºC	5ºC+-5ºC	125ºC+-5ºC	105ºC+-10ºC	235ºC+-5ºC	205ºC+-10ºC
20ºC+-5ºC	5ºC+-5ºC	130ºC+-5ºC	110ºC+-10ºC	240ºC+-5ºC	210ºC+-10ºC
25ºC+-5ºC	10ºC+-5ºC	135ºC+-5ºC	115ºC+-10ºC	245ºC+-5ºC	215ºC+-10ºC
30ºC+-5ºC	15ºC+-5ºC	140ºC+-5ºC	120ºC+-10ºC	250ºC+-5ºC	220ºC+-10ºC
35ºC+-5ºC	20ºC+-5ºC	145ºC+-5ºC	125ºC+-10ºC	255ºC+-5ºC	225ºC+-10ºC
40ºC+-5ºC	25ºC+-5ºC	150ºC+-5ºC	130ºC+-10ºC	260ºC+-5ºC	230ºC+-10ºC
45ºC+-5ºC	30ºC+-5ºC	155ºC+-5ºC	130ºC+-10ºC	265ºC+-5ºC	235ºC+-10ºC
50ºC+-5ºC	35ºC+-5ºC	160ºC+-5ºC	135ºC+-10ºC	270ºC+-5ºC	240ºC+-10ºC
55ºC+-5ºC	40ºC+-5ºC	165ºC+-5ºC	140ºC+-10ºC	275ºC+-5ºC	245ºC+-10ºC
60ºC+-5ºC	45ºC+-5ºC	170ºC+-5ºC	145ºC+-10ºC	280ºC+-5ºC	250ºC+-10ºC
65ºC+-5ºC	50ºC+-5ºC	175ºC+-5ºC	150ºC+-10ºC	285ºC+-5ºC	255ºC+-10ºC
70ºC+-5ºC	55ºC+-5ºC	180ºC+-5ºC	155ºC+-10ºC	290ºC+-5ºC	260ºC+-10ºC
75ºC+-5ºC	60ºC+-5ºC	185ºC+-5ºC	155ºC+-10ºC	295ºC+-5ºC	265ºC+-10ºC
80ºC+-5ºC	65ºC+-5ºC	190ºC+-5ºC	160ºC+-10ºC	300ºC+-5ºC	270ºC+-10ºC
85ºC+-5ºC	70ºC+-5ºC	195ºC+-5ºC	165ºC+-10ºC	Or according to client's request
90ºC+-5ºC	75ºC+-5ºC	200ºC+-5ºC	170ºC+-10ºC

The product UL,CQC,TUV and RoHS certification approval.

---
