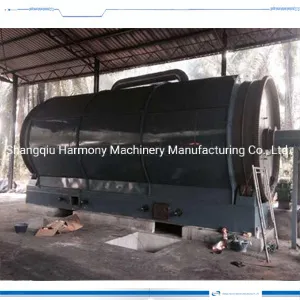

5th Generation Tire Pyrolysis Refining to Oil Plant

US$45,000.00-68,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XHZT-12
Certification
CE, ISO
Voltage
220V
Structure
Horizontal
Machine Name
5th Generation Tire Pyrolysis Refining to Oil Pl
Reactor Size
2.8*6.6m (Dia*Lenght)
Total Weight
35000kgs
Oil Come out Temperature
280-350 Degree
Reactor Material
Q345r
Working Area
500 Square Meter
Working Pressure
Slightly Negative Pressure
Transport Package
Export Packing
Specification
XHZT-10
Trademark
XHZT
Origin
China
HS Code
84198990
Production Capacity
25sts/Month

Product Description

1.Plant technical paramters
Machine type Environmental friendly
Daily capacity 12Ton
Working pressure normal
Working Tem 0-500ºC
Machine weight 35000kgs
Voltage 380v
Power 18kw
Reactor working way Non-rotate
Working round area 600 square meters
Labours required 3
Reactor material Q345R/stainless steel
Dedust system High-class
Used for plastic ,tyre ,oil sludge
Out put fuel oil
Oil rate 70-85%
Feeding way manual/auto feeder
Oil cooling way Water cooling
Water consumption 500-1000kgs
Heating way direct /indirect way
Heating fuel Wool.coal,gas,oil

2.Working process
loading plastic into reactorheating reactor after heating , solid plastic converted to oil gasoil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling systemafter cooling ,light oil gas change to liquid oil and go into light oil tanknon-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuelsmoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
3. Tire Oil Parameter
Gross Calorific Value 10500 Kcal/ Kg
Flash Point 42
SULPHUR 1.17%
Density 0.92
Viscocity 36.06

4.Payment Term And Delivery
Payment term 30% TT deposit ,balance paid before plant loading ,or sight LC
Delivery With 15days after getting advance payment
Warranty period 2 years warranty period, life time maintenance
Installation We send technician for guiding installation and training your workers for free.
