Product Details
Product Description
Product Description
Why is conductivity measurement important in water treatment?
The conductivity of water is extremely important when treating drinking water , industrial water,pure water,boiler water because it gives an indication of the amount of dissolved material within that water.BOQU Instrument supplies a range of high-quality precision conductivity sensors to cover the full range from deionized water all the way up to highly saturated brines.Coupled with BOQU Conductivity analyzer these conductivity sensors provide excellent and cost-effective process control in all industries and applications.
Tech Features of Conductivity Analyzer
1) Multi-function:Conductivity,TDS,Resistivity,Salinity,Temperature
2) Reliable process Conductivity monitoring
3) Simple system integration for easy conductivity measurement
4) Perfect for use in all water quality environments
5) For use with contact conductivity sensors

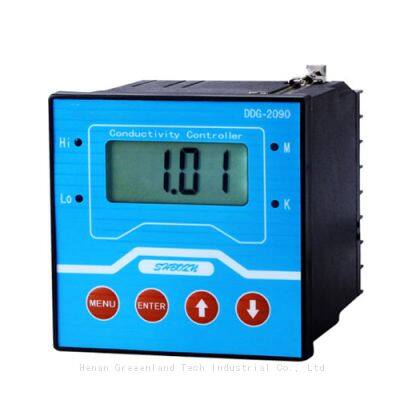

ECG-2090Pro Online Conductivity Analyzer Parameter
Model
| ECG-2090PRO Online Conductivity Analyzer
|
Measurement
| Conductivity,TDS,Resistivity,Salinity,Temperature
|
Measurement range
| 0.00uS/cm~2000000.00 uS/cm(0.00uS/cm~2000.00 mS/cm)
0.00g/L~80.00 g/L(ppt)
0.00mg/L~130000.00 mg/L(ppm)
0.00MΩ~20.00MΩ
-40.0℃~200.0℃(refer to matching electrode)
|
Accuracy
| 1%, ±0.2℃
|
Housing material
| ABS Flame retardant :V0
|
Power
| 90 – 260V AC 50/60Hz
|
Consumption
| 4W
|
Output
| Two ways 4-20mA output
|
Communication
| RS485 Modbus
|
Relay
| Two relays,5A/250V AC 5A/30V DC
|
Temperature.Comp
| PT1000/NTC10K
|
Dimension
| 98.2×98.2×128.3mm
|
Hole size
| 92*92mm
|
Protection
| IP65
|
Data logger
| 1000times
|
Language
| English/Chinese
|
Installation
| Panel/Wall/Pipe mounted
|
>>
