Factory Customized 0.5-30t Warehouse Goods Lift Guide Rail Cargo Lift

Product Description

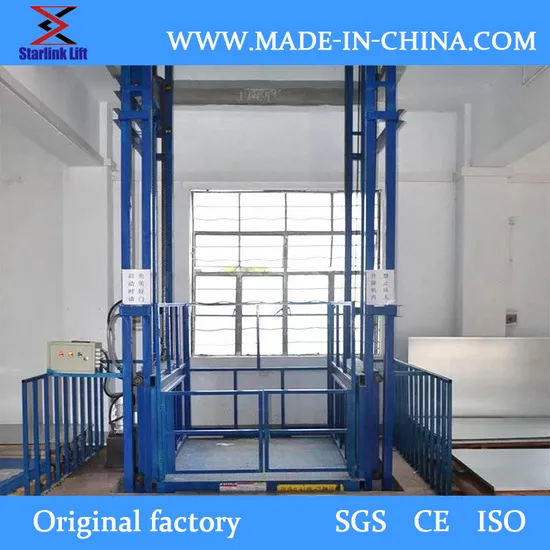

Hydraulic Double Rail&Single Rail Cargo Lift
Product Description
The cargo lift is a cargo elevator driven by a hydraulic system; it is used for the straight-line transportation of goods between two or more points on the floor. The function is roughly equivalent to that of an elevator. Different from passenger elevators, hydraulic freight elevators are only used for cargo transportation.
Hydraulic cargo lift not only have the safety devices of traditional traction elevators, but also have:
(1) Relief valve: can prevent the system pressure from being too high during upward movement
(2) Emergency manual valve: When the power fails, the car can be dropped to the nearest floor in an emergency to open the hall and car doors, allowing passengers to get out of the car safely.
(3) Manual pump: When the system fails, the manual pump can be manipulated to pump out high-pressure oil to raise the car to the nearest floor;
(4) Pipe rupture valve: When the hydraulic system pipe ruptures and the car stalls and descends, it can automatically cut off the oil line to stop the descent.
(5) Oil tank temperature protection: When the oil temperature in the oil tank exceeds the standard set value, the oil temperature protection device generates a signal to suspend the use of the elevator. When the oil temperature drops, the elevator can be started.
Product Parameters

Mode	Capacity(T)	Platform Size W*D(MM)	Travel(M)	Pit W*D*Pit depth(M)	Motor power(KW)
SLDG0.5-3	0.5T	1200*1200MM	3M	1.6*1.4*0.2M	2.2KW
SLDG0.5-6	0.5T	1200*1200MM	6M	1.6*0.4*0.2M	2.2KW
SLDG1-3	1T	1200*1200MM	3M	1.65*1.4*0.25M	3.0KW
SLDG1-9	1T	1200*1200MM	9M	1.65*1.4*0.25M	3.0KW
SLDG2-4	2T	2000*3000MM	4M	2.73*3.43*0.25M	4.0KW
SLDG2-8	2T	2000*3000MM	8M	2.73*3.43*0.25M	4.0KW
SLDG5-4	5T	3000*4000MM	4M	3.8*4.43*0.3M	5.5KW
SLDG5-8	5T	3000*4000MM	8M	3.8*4.43*0.3M	5.5KW
SLDG10-4	10T	4000*5000MM	4M	4.86*5.43*0.35M	11KW
SLDG10-8	10T	4000*5000MM	8M	4.86*5.43*0.35M	11KW
SLDG30-10	30T	5000*8000MM	10M	6*8.5*0.5M	22KW
SLDG30-20	30T	5000*8000MM	20M	6*8.5*0.5M	22KW

Detailed Photos


Company Profile
Shandong Starlink Heavy Industry Machinery Co., Ltd. is located in Jinan City, Shandong Province, China, is a professional production and development of various lifting platform enterprises, the main products are Hydraulic Scissors lift, Trailer boom lift, Home Lift and so on. Over the years, our company to "quality first, customer first, integrity-based" as the business philosophy, has become one of the leading domestic hydraulic equipment manufacturers.
All products produced by our company are in line with national and industry standards, and has passed ISO9001-2000 quality system certification, product quality and performance are recognized, products not only sell well in China, but also exported to more than 50 countries in the world, mainly distributed in Europe, the United States, the Middle East, Southeast Asia and South Africa. All products an be designed and manufactured according to your requirements, welcome to sample customized.
Packaging & Shipping
We will arrange delivery of the freight elevator after testing. The first step is to pack the equipment accessories and put them in wooden boxes, and affix the marks according to the customer's requirements.
