3D Curved Welded Wire Mesh Fence

Product Details

Product Description

Product Description

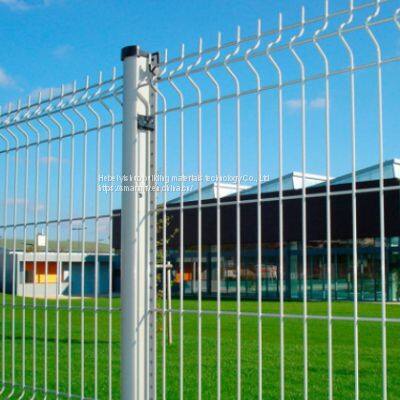

3D Curved Welded Wire Mesh Fence
3D Security Curved Welded Wire Mesh Fence features pressed horizontal "V" shaped beams, in which a horizontal wire spans the entire width of the panel that could provide added strength and rigidity. As a special kind of welded wire panel, 3D welded Curved Welded Wire Mesh Fence panel is made from galvanized carbon steel or iron wires mostly, which is bent into suitable "V" angle and then welded into panel.
For its unique form, beautiful appearance and medium level of security protection, 3D security Curved Welded Wire Mesh Fencing system is ideal for residential and recreational places. And it still offers improved performance and long service life against theft and vandalism on account of its heavy wire, rigid welded structure, fully tightened bolt assembly, the super-durable and environmentally sound powder coating. The curved wire mesh fence Yishuo Building Materials offer is the most advanced automatic welding equipment and made of steel wire, which is welded to form a 50*200mm mesh barrier, sufficient to deter intrusion. Also Gal + PVC Coated coating is available to help you save cost.
Application:
3D Fence Panel can be installed on flat areas or slopes, and it can also be applied in a variety of different land types such as general land surface or sand. With stable, durable and flexible structure, curvy fence panel is widely used as fence in airport, school, factory, residential area, garden, warehouse, stadium, military venue and entertainment place.
1. Private properties and recreational sites
2. Sports facilities, pitches, tennis courts, playgrounds
3. Warehouses, logistics bases – military facilities and sites
4. Housing estates and parking lots
5. Industrial and commercial buildings
6. Public places.
Accessories:
• 1pcs of post plastic rain hats
• Plastic Clamps with bolts and nuts
• Metal clamps with bolts and nuts
Specification

Specification of 3D Curved Welded Wire Mesh Fence Panel
Panel Height	Panel Length	Wire Diameter	Mesh Size	Folds No.	post
0.63m	2.0m 2.5m 3.0m	Gal + Powder Coated 3.85mm/4.0mm 4.85mm/5.0mm	50x200mm 50x100mm 50x50mm	2	Round Post 48x1.5/2.0mm 60x1.5/2.0mm	Square Post(SHS) 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm	Rectangular Post(RHS) 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm
1.03m				2
1.23m				2
1.5m				3
1.53m				3
1.7m				3
1.73m		Gal + PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm		3
1.8m				4
1.83m				4
2.0m				4
2.03m				4
2.43m				4
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated
Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized.
Note: The fence can be customized according to your required if above specification is not satisfied with you.

Curved Welded Wire Mesh Fence is also known as fencing, wire fencing, mesh fence,wire mesh fence, etc. Curved Welded Wire Mesh Fence is pretty light yet durable, its composition is simply wire welded together to make a fence. The surface treatment of Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated.
Uses of Curved Welded Wire Mesh Fence:
1>Security for construction sites and private property
2>Security for residential housing sites and schools
3>For major public events, sports, concerts, festivals, gatherings
4>Mainly used as isolation fences or safety fences for roads, railway.
3D fence posts:
Material: high grade steel for maximum strength and rigidity.
Post section (square and round): 40 × 40 mm, 50 × 50 mm, 60 × 60 mm, 70 × 70 mm, 38 mm, 40 mm, 42 mm.
Post Plate thickness: 1.0–3.0 mm.
Colors: same as panel.
Post cap: metal caps or plastic cap.
Metal clips and clamps are hot dip galvanized then powder coating in green or black color.
Surface Treatment:
Galvanized
The fence has standard galvanized anti-corrosion, in galvanization process a layer of zinc is formed on the surface of steel. This coating protect steels against atmospheric corrosion.
Galvanized and powder coating&PVC coated
Galvanized panel fencing systems may be optionally powder coated in a color of your choice. Powder coating enhances the anti-corrosion by preventing the oxidation of zinc, owing to which our fencing systems preserve their aesthetic qualities from even longer
Wire mesh fence Production Process:
Iron steel wire→Wire drawing→Rust removing → Straighten wire →Cutting wire→Welded Black fence panel→Bended → Acid washing →Galvanizing→Cleaning&Drying→PVC Spray or Coating→Inspecting Quality→Packing .
Precautions for installation
Before installation, the construction department should be familiar with the location of the various pipes buried in the underground to prevent the underground facilities from damaging.
During the construction, the burial of the posts should be carried out in stages. Firstly buried end posts, and then buried the middle post.
If you want to put the posts into concrete, firstly you should drill holes on concrete surface, and then put the posts into it, finally pour the liquid concrete into the hole. During this time, remember to set up temporary cable or support to hold the posts in suitable place until the concrete is hardened.
The posts buried in the ground for a minimum of 0.5 m and a maximum of 1.2 m.
Spacing between posts would better be 0.3 m.
More information please click here.

---
