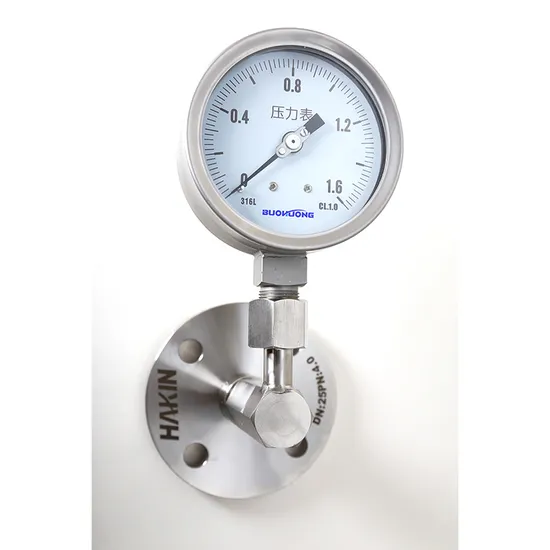

All Stainless Steel 304 SS316 Diaphragm Seal Non-Corrosive Anti-Corrosive Pressure Gauge

Product Description

ApplicationDiaphragm-Seal pressure gauges are widely used in petroleum, chemical, alkali-making, chemical fiber, pharmaceutical, food, textile and other technological processes. It con be used to measure the pressure of media with strong corrosion, high temperature, high viscosity, crystalline, easy to solidify and with solid floating matter, as well 05 to measure the pressure of some media that can not directly enter the general pressure gouge, that is not easy to clean the precipitated material and prevent its accumulation.
These problems can be solved by adopting a diaphragm-seal pressure gouge, which composed of a diaphragm isolator and a general pressure gauge. TheoryWhen the pressure P of the measuring medium acts on the diaphragm, the diaphragm deforms and squeezes the sealing liquid of the pressure measuring system, producing a pressure of P-△P. When the rigidity of the diaphragm is small enough,△P will also be small, and the pressure inside the pressure measuring system is close to the pressure of the measuring medium. Working Theory

Scale Unit	Pa	KPa	MPa	bar	kgf/cm²	atm	mmHg	Lbf/in²(psi)
Pa	1	0.001	0.000001	0.00001	0.00001	0.00001	0.0075	0.000145
KPa	100	1	0.001	0.01	0.010197	0.00987	7.50062	0.14504
MPa	1000000	1000	1	10	10.1972	9.86923	7500.62	145.038
bar	100000	100	0.1	1	1.01972	0.98692	750.062	14.5038
kgf/cm²	98066.5	98.0665	0.098067	0.980665	1	0.9678	735.556	14.2233
atm	101325	101.325	0.101325	1.01325	1.03323	1	760	14.6959
mmHg	133.322	0.1333	0.000133	0.00133	0.00136	0.00132	1	0.01934
Lbf/in²(psi)	6894.76	6.89475	0.00689	0.06894	0.07031	0.06805	51.7151	1

Company Profile
Zhejiang Bohong Intelligent Technology Co., Ltd., situated at 1118 Xin'an Road in the Nanxun Economic Development Zone of Huzhou City, Zhejiang Province, is a modern enterprise designed in a garden-style aesthetic. This venture is a joint investment by Zhejiang Xingxiangyi Precision Manufacturing Co., Ltd. and Zhejiang Hakin Instrument Co., Ltd. Its workshop spans 12,000 square meters. Our company possesses more than 200 sets of various production and testing equipment, all of which are at an industry-leading level, fully capable of comprehensive performance testing for pressure instruments.
Our company boasts a seasoned research and development team consisting of over 70 mid-level and senior professionals who are committed to crafting high-quality, reliable pressure gauges, thermometers, gas pressure regulators, welding and cutting torches, and other related products.
Our pressure gauges are certified with the Type Approval Certificate for Measuring Instruments, and our company has achieved certifications in international quality, environmental, and occupational health and safety management systems, along with ISO measurement management, Korean Industrial Standards (KS), Chinese Intellectual Property Standards, and EU CE Certification.
Our diverse product line serves critical roles in defense, aerospace, shipbuilding, machinery, petrochemical, metallurgy, power generation, textiles, food, and pharmaceutical industries. It includes a wide array of pressure gauges, regulators, high-purity gas reducers, and welding tools, totaling over a hundred varieties and two thousand models, forming a comprehensive product system that caters to a broad customer base.
With an extensive network of over 400 sales and service centers across more than 30 provinces, cities, and autonomous regions, our products are also exported globally to markets in Europe, the Americas, Russia, Canada, South Korea, Southeast Asia, and beyond.
Production Line
3 Pressure Gauge Production Line
Gas Regulator Production Line
Processing Area
Overpressure Testing Area
Welding Area
Packing
QC & R&D Team
Exhibition
Delivery
FAQ:
1. The Quality of Our Products
Q: How is the quality of your pressure gauges ensured?
A: Every single one of our pressure gauges is subjected to a stringent testing process, including Bourdon tube overpressure tests, finished product overpressure tests, 100% inspection before leaving the factory, and random inspections on each batch. We are committed to ensuring that every pressure gauge meets the highest quality standards.
2. Price
Q: What pricing can we expect for your products?
A: Our team has over ten or even twenty years of rich experience in the pressure gauge industry, and we strive to provide customers with high-quality products with high cost-effectiveness. Our pricing reflects both the high quality of our products and the rationality of the market.
3. OEM Services
Q: Do you provide OEM services?
A: Yes, over the years, we've handled many OEM orders from globally renowned companies. Our extensive experience ensures that we can meet a diverse range of OEM requirements with precision and high quality.
4. Delivery
Q: What are your delivery times?
A: Our delivery schedule is prompt, with a turnaround of approximately 30 days for existing models. We prioritize efficient production timelines without compromising on quality.
5. Service
Q: What after-sales service do you offer?
A: We aim for long-term trade cooperation, so we always provide the best after-sales service. We understand that each situation is unique. Therefore, we are open to discussing and agreeing upon the most suitable form of compensation on a case-by-case basis to ensure your satisfaction.
6. Special Orders:
We welcome orders with special requirements for our products. Our R&D team is ready to meet your specifications with precision and care.

---
