Well Made Topmac Brand Rdcm500-16dhs Diesel Concrete Mixer

US$3,650.00
1-9 Pieces
US$3,500.00
10-49 Pieces
US$3,380.00
50+ Pieces

Basic Info.

Model NO.
RDCM500-16DHS
Shotcrete Type
Wet
Machining Process
Vacuum
Structure
Rotor Type
Productivity
25m²/h
Feeding Height
1370mm
Vibrating Amplitude
1.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Applicable Industrie
Hotels, Garment Shops, Building Material Shops
After Warranty Service
Video Technical Support, Online Support, Spare PAR
Product Name
Topmac 510lt Diesel Concrete Mixer Self Load
Discharge Way
Tilting Drum
Unique Selling
High Operating Efficiency
Water Supply Model
Manual or Water Pump
Reclaiming Capacity
350L
Speed of Mixing Drum
25rpm
Transport Package
No Nude
Trademark
TOPMAC
Origin
Zhengjiang, China
HS Code
84743100
Production Capacity
100 Unit

Product Description

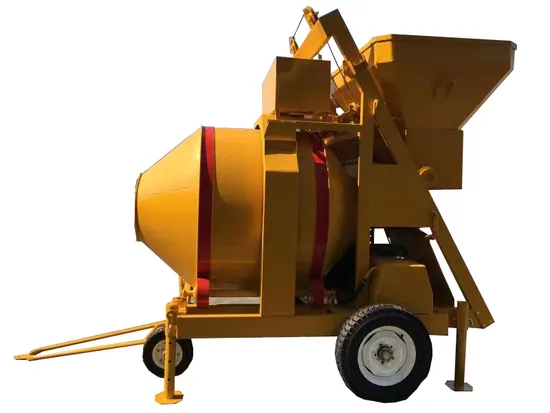

Well made Topmac Brand Rdcm500-16dhs Diesel Concrete Mixer
Reverse Drum Concrete Mixer With Slide Hoisting Hopper
Model RDCM500-16DHS / RDCM1000-31EHS
RD series concrete mixer is reverse drum mixer. It can work alone, or be combined with PLD series batching machine to work as simplified concrete mixing plant. It can be applied in large, medium-sized, and small component factories and roads, bridges, water conservancy, ports, etc. industrial or civil constructions. It can be used to mix the dry concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete and various mortars. It is a high efficient machine with extensive applications.
Special designed winch reel prolongs the service life of the steel wire rope.
Technical Parameters
Model RDCM500-16DHS RDCM1000-31EHS
Drum Volume 2600L 5200L
Capacity of loading 750L 1600L
Capacity of discharging 500L 1000L
Drum Thickness 5mm 8mm
Hopper Thickness 4mm 5mm
Output 18-22 25-30
Drum rotating speed 13-15 13-15
Max. Towing speed 20km/h no
Power 15kw 31kw
Power source Changfa CF1115 Diesel Engine Electric Motor
Overall size (L×W×H) 3900×2300×3750mm 7600×2200×7455mm
Total weight 2350kg 5200kg
Hopper lifting model Slide hoisting hopper Slide hoisting hopper
Towing wheels Two wheels or Four wheels No
1×20' container can be loaded with 2 Units 1 Unit
1×40'GP container can be loaded with 4 Units 2 Units
