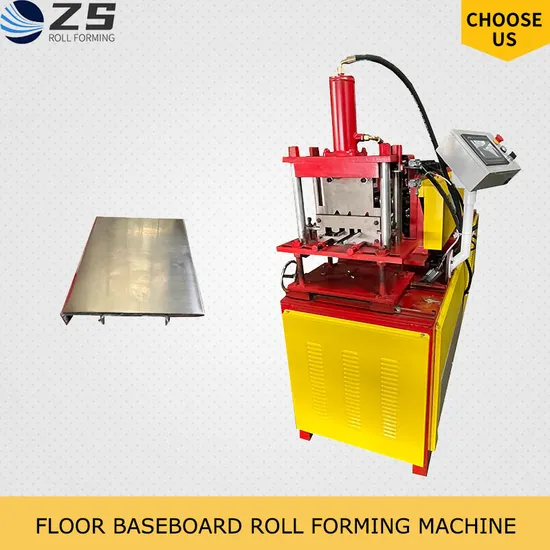

Aluminum Baseboard Roll Forming Machine with 1.5-2.0mm Thickness Capacity

Product Description

Product Description
Aluminum Profile Floor Baseboard House Shadow Edge Trim Roll Forming MachineWe offer bespoke customization for our machines based on your specific designs and requirements. This profile is primarily utilized for floor baseboards.
Roll Forming Machine Components:

No.	Name	Qty
1	De-coiler	1 Set
2	Forming Machine	1 Set
3	Hydraulic Cutting Device	1 Set
4	PLC Control Box	1 Set
5	Hydraulic Pump Station	1 Set
6	Production Support Table	1 Set

Working Flow:
Decoiler ---------- Roll forming ---------- Hydraulic cutting
Detailed Photos
Main Roll Forming System:
Driving Type: Chain (common), Gear, or Gearbox
Forming Model: Integral Forming or Split Forming
Forming Machine Structure: Medium-plate Type (common), Arch Type, or Guide-pillar Type
Roller: GCr15 steel
Shaft: High-quality 45# steel, 70mm in diameter
Motor Power: 5.5kW or tailored to design specifications
Main Frame: Sturdy 350# or 400# H-beam steel, welded for durability
Roller Details:
Rollers are processed with precision by CNC centers, ensuring high accuracy and perfect product formation.
We can adjust to different sizes through spacers, enabling one machine to produce two sizes.
Hydraulic Cutting System:
Working Model: Hydraulic Cutter (common) or Electric Cutter
Cutter Blade Material: Cr12 steel
One blade is versatile for two sizes, eliminating the need for adjustment.
PLC Control System:
PLC Brand: Delta
Touch Screen: Delta
User-friendly operation
No.20 orders
Hydraulic Oil Pump System:
Equipped with a hydraulic oil pump and fan cooling system
Power: 4kW
Gear pump type
PLC Control System
Automatically controls quantity and cutting length
Input production data (batch, quantity, length, etc.) on the touch screen for automated production.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand) Or Delta(Taiwan brand)
Inverter	Siemens (German brand) Or Delta(Taiwan brand)
7-Inch Color Touch Screen	Siemens (German brand) Or Delta(Taiwan brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens (German brand) Or Delta(Taiwan brand)
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V

After-Sale Service:
1. Warranty:18months from the date of receipt of the machine.
Within these 18 months, we will send replacement parts free of charge.
2. We provide technical support for the entire lifespan of our machines.
3. We can dispatch technicians for installation and worker training at the client's factory, subject to additional costs.
Terms Of Trade:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
