CNC Turning Machine with Multi Head

Product Description

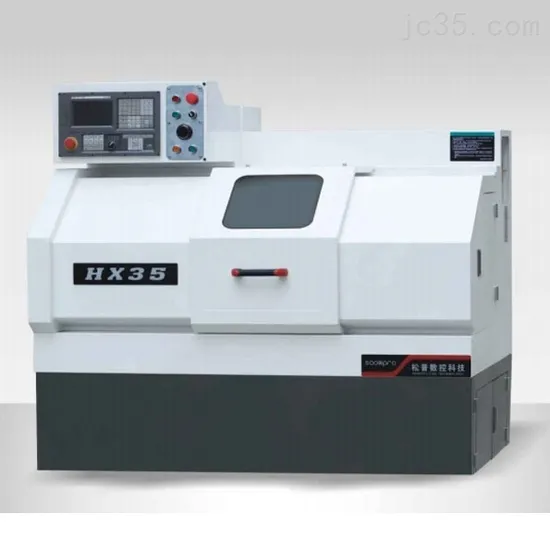

HX35 CNC multi-axis :

Can process all kinds of complex shape parts, can use spring chuck, chuck and jig.

High precision and rigidity, modular design, can be installed on demand, electric tool holder.

High cost performance, superior cutting ability, to achieve high production

HX35 NC multi-axis technical parameters:

Guide Rail form	/	linear
Spindle through hole diameter	mm	Ф49
Max bar diameter	mm	Ф40
Spindle end form	/	A2-5
Spindle quantity	spindle	1
Spindle wheelbase	mm	/
Taper of spindle bore	mm	42°
Drilling and milling power head	/	optional
clamping way	/	Pneumatic/Hydraulic (optional)
Spindle shift		Frequency conversion/servo (optional)
Spindle speed	rpm	0-2500r/min(4000r/min)
Main motor power	kw	4/5.5
Swing over bed	mm	Ф320
Swing over carriage	mm	Ф140
X/Z Max travel	mm	300/350
X/Z Rapid speed	mm/min	15000/18000
Dimensions of tool table	mm	550×260
Foot size	mm	1000×680
Linear guide's span	mm	270
The width of the head	mm	450
Tool post form	/	Tool rest/Electric Tool Rest (optional)
Tool dimension	mm	The square dimension of the outer round tool is 20×20
	mm	Boring tool diameter of 20
Tail stock travel	mm	/
Taper of tailstock quill	/	/
weight	KG	1000
overall dimension	mm	1300×1650×1700

Guide Rail form:linear
Spindle through hole diameter:Ф49mm
Max bar diameter:Ф40mm
Spindle end form:A2-5
Spindle quantity:1
Taper of spindle bore:42°
Drilling and milling power head:optional
clamping way:Pneumatic/Hydraulic (optional)
Spindle shift:Frequency conversion/servo (optional)
Spindle speed:0-2500r/min(4000r/min)
Main motor power:4/5.5
Swing over bed:Ф320mm
Swing over carriage:Ф140mm
X/Z Max travel:300/350
X/Z Rapid speed:15000/18000mm/min
Dimensions of tool table:550×260mm
Foot size:1000×680
Linear guide's span:270mm
The width of the head:450mm
Tool post form:Tool rest/Electric Tool Rest (optional)
Tool dimension:The square dimension of the outer round tool is 20×20mm/Boring tool diameter of 20mm
Weight:1000kgs
overall dimension:1300×1650×1700mm

---
