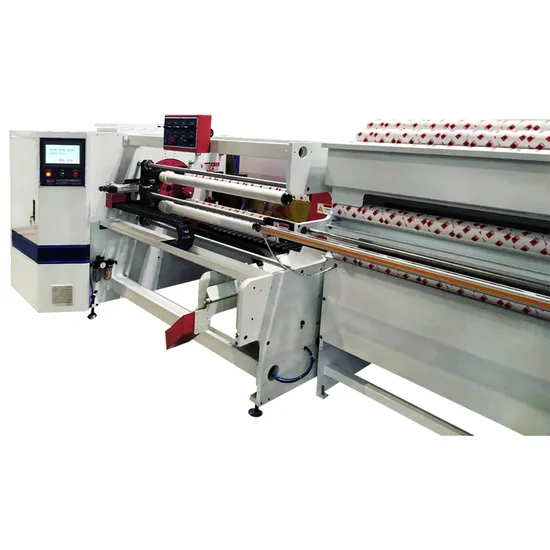

Maquina Cortadora De Nucleo De Papel Completamente Automatica De 4 Ejes

Product Description

Machine width		1.0m/1.3m
Paper core diameter		76mm x (2-6)T
PLC control system		Mitsubish
Cutting mode		Double cutter with 4 shafts exchange
Blade		25.4 x 100 x 2mm
Main motor		5.5KW
Motor of cutting round knife		3HP AC motor with inverter
cutting system:		700W servo motor control

Features: Centralized control panel: all operation controls. For this machine are centralized in a control panel. Control panel provides major functions: material and blade running speed (LED screen display), width counter, number of cuts counter. Silicon lubricating system prevents the blade from sticking on adhesives and allows smooth cutting at all times. Silicon liquid is re-circulated. The blade is back pressure controlled through an air and hydraulic combination, giving maximum cutting stability and fast blade retract after each cut, cutting pressure can be easily adjusted to suit various types of materials. Cutting circular knife and main shaft power force adopted with AC step-lessadjusting motor and available in any rotating direction. Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size PLC programmable control.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory and we have years of experience of manufacture of rewinding and cutting machines. 2.Q:Does the machine be able to cut different size of tapes? A:Yes absolutely , you can set any width by the PLC controler. 3.Q:Do you make machines according to specifications? A:Yes,we do design different machines for special purpose. 4.Q:Do you have the manual book ? A:Yes, and if necessary , our engineers are available to service overseas .And our machines are highly automatical and easy to operate. 5.Q:How long does it usually take you to make the delivery. A:As a rule ,we deliver our machine within 1 month , and of cause it will take longer for special orders , but in no case would it take longer than 3 months. 6.Q:The voltage in our country is different from yours,does the machine can be changed? A:Yes, we can make the change for customers.

---
