Product Details
Product Description
Product Description
Product Description

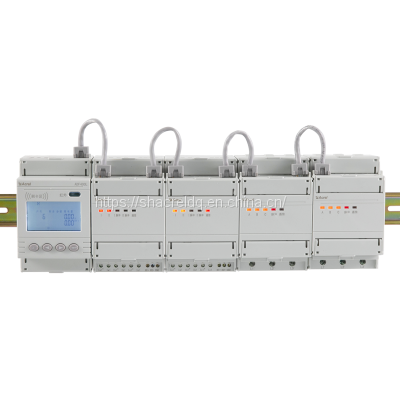

ADF400L series multi-channel energy meter, through the way of combination module can realize largest 36 circuits single-phase or 12 circuits three-phase, CT connect or direct connect. this series of energy meter with high accuracy, high concentration, centralized management, installation flexibility, the advantages of each other non-interference by the community, schools, enterprises of all areas. The series of meters support prepaid power function.
Technical parameters
1.Products measurement type
Features
| Function Description
|
Display method
| LCD（Field）
|
Energy metering
| Active energy metering（Forward and reverse），
Reactive power measurement（Forward and reverse）
|
Electricity measurement
| Voltage, current (zero sequence current), power factor, frequency, active power, reactive power, apparent power
|
Harmonic function
| Total harmonic content, sub-harmonic content (2～31 times)
|
Three-phase unbalance
| Voltage and current unbalance
|
DI/DO
| Main module 2DI2DO
|
Transformer access to the slave module 2DI4DO (direct access to the slave module without)
|
LED Instructions
| Pulse light indication
|
Communication
| Infrared communication
|
RS485 interface (main module) supports MODBUS
|
Historical power
| Historical Electricity in Last December
|
Dimensions and wirings
Main module size
Slave module (direct access or transformer access module) size
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
>>
