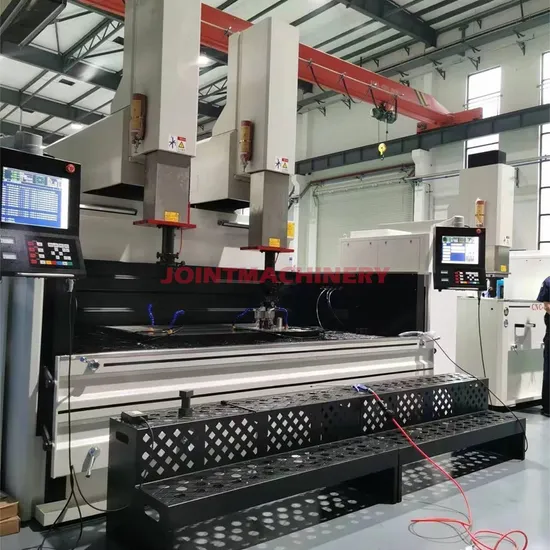

High Accuracy Double Bull Head EDM Machine Die Sinking Machinery M-1470r

Product Description

√ Suitable for ultrahigh precision molds and parts processing
√ U-class high quality ultra-fine surface processing,low loss,high finish.
√ Used for machining complex curved parts,precision connectors,precision machining of precision parts,solving complex machining problems.
√ Achieve large-area and high-glossuniform processing,small-area PIKA surface processing.
CNC EDM Machine

Model	Unit	M-1470R
Worktable size (L*W)	mm	1500*900
Inner dimensions of machining tank	mm	2250*1300*700
X,Y,Z axis travel	mm	1400*700*500
Z axis Max load weight	kg	150
Max workpiece weight	kg	5000
Min/Max distance from plate electrode to worktable	mm	650/1250
Machine weight(without CNC power supply)	kg	8000/8700
Dimensions	mm	3800*3650*3030
Power supply	V	380
Total input power	KVA	9+9

Model	Unit	ZNC MACHINE			CNC MACHINE
Control mode & Axis No.		NC with close circuit / Single Z axis control			NC with colse circuit / X,Y and Z axis control
Min setting value	mm	0.005 (0.001)			0.005
Max setting value	mm	9999.995 (9999.9999)			9999.995
Coordination system		(INC), (ABS)			(INC), (ABS)
Screen		15''TFT			15''TFT
Control system		Industrial PC			Industrial PC
Moving velocity of controller		0.005mm (Per Unit)*1, *5, *10			0.005mm (Per Unit)*1, *5, *10
Procedure in store		0-999 groups			0-999 groups
Max current for processing	A	50	75	100	50	75	100
Input rated power	Kva	5	6	10	5	6	10
Max cutting processing speed	mm2/min	360	560	700	360	560	700
Consumption of the electrode head	%	<0.2			<0.2
Best surface rough	μmRa	0.25			0.25
Dimension	mm	620*860*1850			620*860*1850
Net weight	kg	210			215

EDM machines are mainly used to process various high-hardness materials (such as cemented carbide and hardened steel, etc.) and complex-shaped molds and parts, as well as cutting, grooving and removing tools (such as drills and taps) broken in workpiece holes.

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

---
