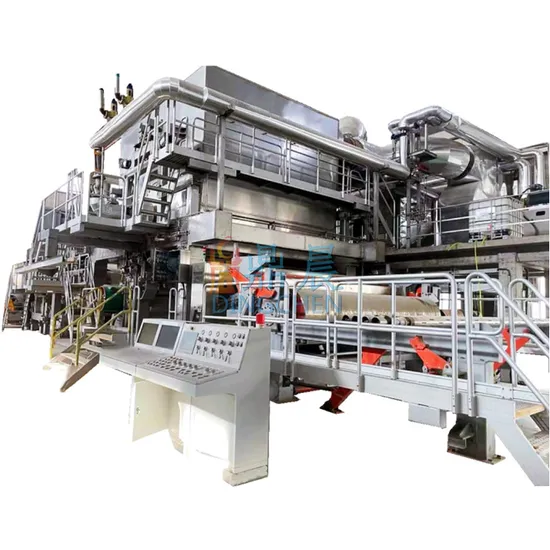

New Technology 2850mm Crescent Type Toilet Tissue Paper Machine

Product Description

2850mm 20-25T/D Crescent Type Toilet Tissue Paper Making Line
1.Output paper: Toilet Tissue paper
2.Raw material: NBKP, LBKP, Recycled paper(White cuttings)
3. Paper grammage: 13.5-30g/m2
4.Paper width: 2850mm
5.Capacity: 20-25T/D
6.Working speed: 350-400 m/min
7.Designing working speed: 450m/min
8.Drive way: AC converter speed control, sectional drive.
Machine Specification

No.	Item/Specification	Quantity	Function
1	Hydra-Pulper	1	To beat cellulose board to be pulp
2	Pulp screeing equipment	1	To separate fiber and clean pulp
3	Pulp grinding machine	1	To grind pulp fiber
4	Crescent Type Headbox	1	Paper forming device
5	Ø3000mm Yankee dryer	1	Dry paper
6	Horizontal type pope reeler	1	Winding paper into roll

Perfect service: 1.technical consultation 2.Plant design 3.installation and test run 4.training engineers and workers 5.good and long time after-sale service The business process 1.send your requirements:raw material,capacity,paper grammage 2.we make the solution to you 3.come visit and negotiate 4.sign contract 5.first payment 6.production 7.pay spare money 8.delivery 9.installation ,training,test run 10.production consultlation

---
