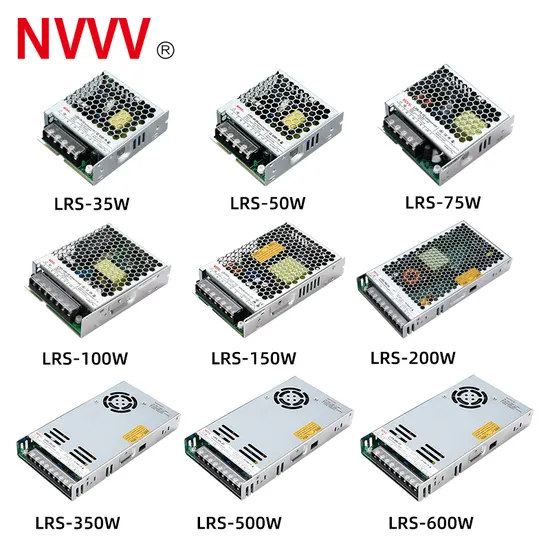

Nvvv- Switching Power Supply Manufacturer UL /Kc/ CB AC110 240V 15-3000W SMPS 1A2a3a2.5A5a8a10A15A20A

Product Description

Product Description Specification

S-15 15W switching power supply
project		Technical index
output	DC voltage	5V	12V	24V	36V	48V
	Rated current	2A	1.25A	0.62A	0.42A	0.31A
	Rated power	10W	15.6W	16.8W	15.12W	14.88W
	Ripple and noise	<50mV	<120mV	<150mV	<240mV	<240mV
	Voltage accuracy	±2%	±1%
	Output voltage regulation range	±10%
	Load adjustment rate	<±1.5%	<±0.5%	<±0.5%	<±0.5%	<±0.5%
	Linear adjustment rate	<±0.5%
input	overload protection	85-132VAC/176-264VAC 47Hz~63Hz (254VDC~370VDC)
	Efficiency (typical)	>78%	>82%	>84%	>84%	>84%
	Working current	<0.3A 110VAC <0.15A 220VAC
	Impulse current	110VAC 18A, 220VAC 36A
	Start, rise, hold time	200ms,50ms,20ms :220VAC
protect	overload protection	≥ 105% - 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again
	Short circuit protection	VO drops to undervoltage point to close output
Environmental Science	Working temperature and humidity	-10ºC~+50ºC;20%~90RH
	Storage temperature and humidity	-20ºC~+85ºC;10%~95RH
Safety regulations	Withstand voltage	Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute
	Leakage current	5mA at 1.5kVac input-output
	Leakage current	Input output at 220VAC < 1mA
	Isolation resistance	Input output, input shell, output shell: 500VDC / 100M Ω
Other	size	99*97*36mm
	Net weight / gross weight	284.5/311.6g

Packing & Delivery Company Profile Our Team FAQ Q1:How many Voltage you can supply? A: 12v,24v,48v,50v,60v,110v(Depend on items). Q2Can I have a sample order? A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable. At thesame time, we have overseas warehouses so that you can get the products faster.
Q3Do you have any MOQ limited for the order? A: Low MOQ, 1pc for sample checking is available.
Q4How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx, or EMS. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5Do you offer a guarantee for the products? A: Yes, we offer a warranty on our products.
Q6: How to deal with the faulty? A: Firstly, our products are produced in a strict quality control system and the defective rate will be less. Secondly, during the guarantee period, we will send new products with new orders for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.

---
