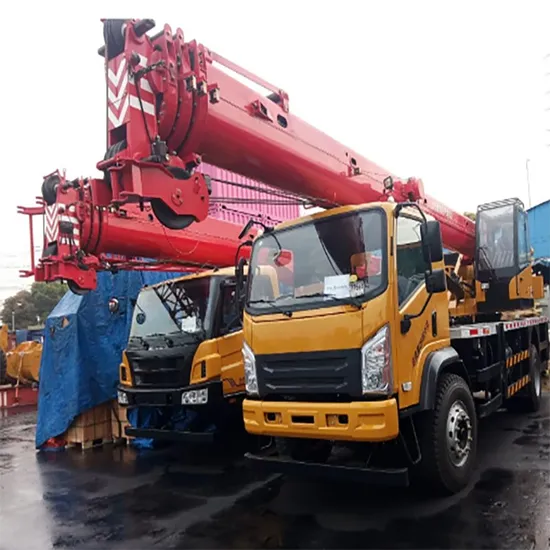

Henan Mine Hot Sale High Rated High Quality Low Price Stc500 100 Ton Mobile Telescopic Boom Truck Crane

Product Description

Basic Info.

Products Description
H
STC250 100 Ton Medium Size High Quality Truck Crane

Excellent and stable chassis performance /chassis system
Double-axle drive is used, providing good traffic ability and comfortableness under complex road condition with reliable traveling performance.
Engine has the multimode power output function, which reduces power consumption.
The use of tipping over early-warning technology provides high stability and safety of the overall operation.

Highly efficient, stable, energy-saving and adjustable hydraulic system
Electrical proportion Hydraulic system load feedback, piston pump, electrical controlled valve and constant power control are applied to provide strong lifting capacity and good micro-mobility.
Unique steering buffer design is adopted to ensure stable braking operation.

Ultra long, super strong and highly sensitive load lifting capacity
Five-section boom of high strength steel structure and optimized U-shaped cross reduces weight significantly with higher safety rates.
Jib mounting angles are 0°, 15°and 30° which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.
Detailed Photos Product Parameters

Capacity	Max. lifting capacity	100t
Dimensions	Overall length	12750mm
	Overall width	2500mm
	Overall height	3550mm
	Axles	3
	Axle distance-1,2	4325mm
	Axle distance-2,3	1350mm
Weight	Overall weight	30000kg
	Front axle load	6500kg
	Rear axle load	23500kg
Engine	Model	WEICHAI
	Rated power	213kw/2100r/min
	Rated torque	1050N·m/1200~1400r/min
	Emission standard	Euro 3
Traveling	Max. traveling speed	80km/h
	Min.turning radius	10m
	Min.turning radius of boom head	12 m
	Drive train	6×4
	Min. ground clearance	220mm
	Approach angle	17 °
	Departure angle	12 °
	Max. gradeability	38%
	Fuel consumption per 100km	≤ 37L
Main Performance	Temperature range	- 30 ºC~ + 60 ºC
	Min.lifting radius	3m
	Tail swing radius of superstructure	3.37m
	Boom section	4
	Boom shape	U-shaped
	Max. lifting moment-Base boom	962kN·m
	Max. lifting moment-Full-extend boom	544kN·m
	Max. lifting moment-Full-extend boom+jib	341kN·m
	Length-Base boom	10.65m
	Length-Full-extend boom	33.5m
	Length-Full-extend boom+jib	41.5m
	Outrigger span(Longitudinal/Transversal)	5.3m × 6.2m
	Jib offset	0 ° 15 ° 30 °
Aircondition	HVAC in up cab	Cooling and Heating

Company Profile
Henan Mine Crane Co., Ltd was established in 2002, covering an area of 1.62 million square meters, with more than 4700 employees. Since its establishment 20 years ago, the company has been advocating the development concept of reform and innovation, pursuing excellence, intelligent manufacturing, green and efficient, adhering to the continuous reform of technology, process, equipment, products and services, promoting the upgrading and transformation of the industry to automation, intelligence and informatization, and providing customers with allround services. At present, the company's products have achieved remarkable results in more than 50 professional fields, such as aerospace, technology automobiles and ships, food and chemical industry, metal processing, steel smelting, machinery manufacturing and waste incineration treatment. The products cover more than 80 countries and regions and serve more than 7000 medium and high-end customers worldwide.

---
