Unpressurized 25 Tubes Vacuum Tube 316L Stainless Steel Solar Thermal Hot Water Heating Collector Device Price

US$142.00 1 Piece (MOQ)

Basic Info.

Model NO.
VNSC-T1816S3-25T
Application
Water Heater, Solar Thermal, Hot Water System
Pipe Material
Glass
Manifold Size
180X160mm
Bracket
Aluminum
Manifold Material
Shell All in 3016L Stainless Steel
Glass Tube
Three Target High Performance Coating
Transport Package
Carton
Specification
25 tubes
Origin
China
HS Code
84199010
Production Capacity
108000 Sets

Product Description

Product DescriptionStainless Steel All Glass-tube Solar Collector(One-wing Type) consists of glass vacuum tube, non-pressurized manifold and supporting bracket, working principle is thermosyphon the same as integrated non-pressurized system, water is heated directly in glass tubes, taking advantage of the natural circulation due to smaller density in hot water than cold water. series or/and parallel arrays of solar collector is usually adopted for large-scale hot water heating project.

Detailed Photos
Our AdvantagesLight points
1.Manifold all in 316L even side cover is 316L stainless steel ,it is the best stainless steel against bad water quality and enviroment.
2.Support frame in aluminum alloy also against chemical environment.
3.Tube holder adopt the adjustable plastic caps,easy for installation

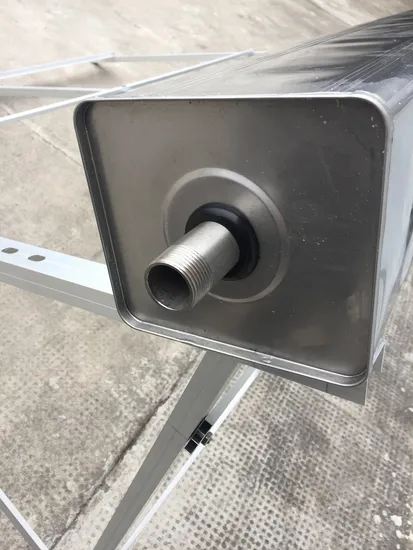

4.Inlet and outlet 1'' fit for commercial hot water system, It is same 316L stainless steel .
5.Arc-argon technical is applied to welding inlet and outlet ,no hurt to inner steel
Product ParametersSpecification
Item No.Solar Vacuum TubeAperture
Area (m2)
Collector Size
L*W (mm)
Collector
Liter (L)
Loading / Sets
Tube Size/ mmTube Nos.20GP40HQ
VODNPSC-316-15TΦ58*1800151.402025*122546108261
VODNPSC-316-20TΦ58*1800201.892025*16806180192
VODNPSC-316-25TΦ58*1800252.362025*20557668164
VODNPSC-316-30TΦ58*1800302.832025*24309254131
VODNPSC-316-36TΦ58*1800363.392025*288011047114

Vacuum tube Size (mm) Φ58×1800
Tube (pcs) 15/ 20 / 25 / 30 / 36
Material Borosilicate glass, magnetron spluttering coating
Coating Cu/SS-ALN(H)/SS-ALN(L)/ALN
Manifold Dimension 180*160mm, 1" male thread inlet & outlet
Inner tank Food-grade 316L stainless steel
Tank shell Stainless steel 316L
Insulation Imported polyurethane integrated foam-forming
Bracket aluminum alloy
Accessories Stainless bolts & nuts, waterproof silicon rubber seal,dustproof rubber seal, plastic pipe holder
Tilt angle 20°~ 90° (Vertical/ horizontal shift: -5°/-5°)
Hail resistance Φ25mm diameter
Packaging & Shipping
Company ProfileHaining Vod Solar Energy Industry CO.Ltd. is one of solar water heater manufacture focus on solar products and solar solutions for more than 20years. As solar water heater manufacture, we do mainly produce a large different ranges of solar water heater: open loop solar water heater, close loop solar water heater, solar thermal collector ,heat pipe solar collector and customized solar water heater. As a developing and energy saving factory, we supply different energy saving products: air source heat pump, solar pump, solar light, solar pv on-grid and off grid system, solar refrigerator, solar AC and so on.
In order to produce a high-quality solar water heater, we do investigate on large amount on producing machine and skill workers. We adopts 8 location automatic punching machine, arc-argon welding machine, automatically lines for solar manifold ,up and down foaming platform for foaming and other lead technical machines. About 85% workers have more than 10years working experience in solar water heater manufacturing. The professional engineer team is built especially for large scale solar water heating system design and installations. The team offers different solar solutions according to customer's different project request or single products request.
As a responsible solar water heater manufacture, we have a strict quality control in materials and production, we pay the double attention on producing. Even a screw, we test and choose the best for our solar water heater. We are do improvement details according the customer feedback and producing process. To offer a quality solar water heater, 100% solar water heater tank are tested and a sample set are installed to check if all is fine before delivery. All solar water heater we produced; the lifetime is more than 10years.Free exchange on damage goods fall in our warranty period.
