Product Details
Product Description
Product Description

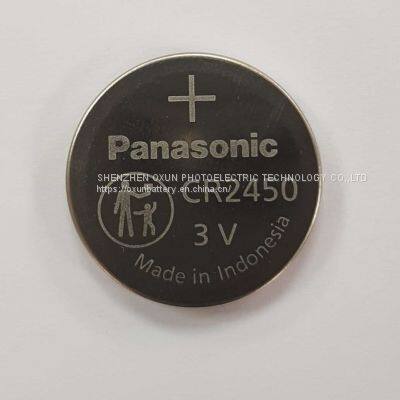

Button battery Main Feature:
| Cell brand | Panasonic |
| Part no | CR2450 |
| Nominal voltage | 3V |
| Nominal capacity | 620mAh |
| Size | 24.5*5.0mm |
| Weight | 6.3g |
| Operating temeprature | -30°C to +60°C |
Lithium button battery Advantage:
* Long discharge platform
* Low inner resistance
* Low self-discharge
* CE/RoHS/UL/SGS certificates
Lithium button battery Application:
* Watches, calculatators, clocks
* RFID(Electronic label/tag)
* Cameras, radios, audio equipments, data logger, data acquistion systems
* Car key, electronic communication devices, industrial monitors/controllers
* Handheld small medical equipment
* Remote keyless entry, security devices
* Backup power source of POS machine and other electric devices
Other Models
| Model | Chemistry | Voltage(V) | Norminal Capacity
(mah) | Dimension | Weight | Recommended Continuous Drain(mA) | Recommended Pulse Drain(mA) |
| CR1220 | Lithium | 3.0 | 35 | 12.5*2.0 | 0.9 | 1.0 | 5 |
| CR1616 | Lithium | 3.0 | 55 | 16.0*1.6 | 1.2 | 2.0 | 10 |
| CR1620 | Lithium | 3.0 | 75 | 16.0*2.0 | 1.6 | 2.0 | 10 |
| CR2016 | Lithium | 3.0 | 90 | 20.0*1.6 | 1.8 | 2.0 | 15 |
| CR2025 | Lithium | 3.0 | 165 | 20.0*2.5 | 2.4 | 2.0 | 15 |
| CR2032 | Lithium | 3.0 | 225 | 20.0*3.2 | 3.0 | 3.0 | 20 |
| CR2430 | Lithium | 3.0 | 265 | 24.0*3.0 | 4.5 | 3.0 | 10 |
| CR2450 | Lithium | 3.0 | 620 | 24.0*5.0 | 6.2 | 3.0 | 30 |
| CR2477 | Lithium | 3.0 | 1000 | 24.0*7.7 | 7.0 | 3.0 | 20 |
Packing&Delivery
1. All shipping goods are 100% inspected and packed very well.
2. The images shown are for your reference Only.
Please directly contact me at Jason@amtoxe.com or whatsapp: +86-13410394578, skype : Jason.zhang612, thanks
>>
