Mobile Concrete Mixing Plant 60m3 Portable Concrete Batching Plant

Product Description

Mobile Concrete Mixing Plant 60m3 Portable Concrete Batching Plant Product Description

YHZS60 concrete mixing station adopts forced twin-shaft mixer, which can mix a variety of concrete; aggregate is measured by batching machine, fully automatic computer control, simple operation, easy adjustment and reliable;
The belt conveyor feeding method is adopted, with high productivity and efficiency, suitable for large-scale concrete production on site.

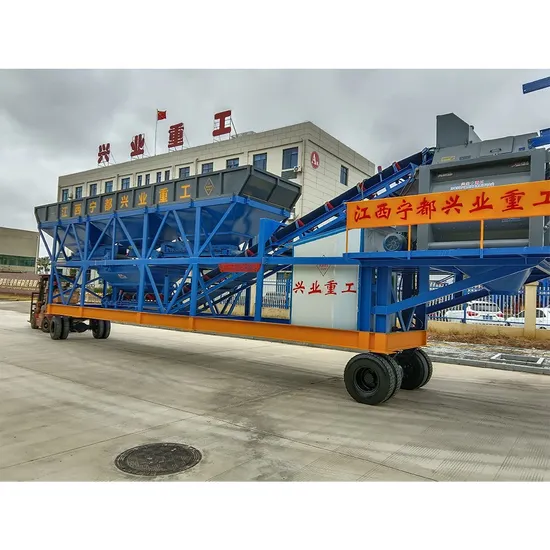

Mobile concrete batching plant is a towable mixing equipment that integrates aggregate, weighing, mixing, and transportation in one centralized towing unit. It is suitable for mobile construction of projects such as roads and bridges that require a relatively small amount of concrete.

Mobile concrete mixing station is a concrete production equipment that integrates the material storage, weighing, conveying, mixing, unloading and automatic control system of a concrete mixing station into a trailer unit. It has all the same action processes, operation methods, and maintenance as fixed automatic mixing stations. It also has unique features such as flexible mobility, quick and easy disassembly and assembly, and simple storage and management. It is the best model for mobile construction of highway, railway, bridge, port, hydropower and other projects.
HZS series is a new kind of compulsory volumetric concrete mixing equipment . It includes JS concrete mixer, PLD matching machine,cement silo,conveying system and control system, accumulative system and weighing system.And also has the efficiency mixing well, high productivity can get 50m3/h ,60m3/h,75m3/h,90m3/h ,120m3/h and more high capacity as you needed.
It's have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.
Detailed Photos
Product advantages
1. HZS60 concrete mixing plant adopts high-performance twin-shaft forced mixer as the supporting host. It has fast mixing speed, wide mixing range and high concrete quality.
2. HZS60 concrete batching plant adopts national point-to-point feeding technology to ensure dynamic metering accuracy of ±1%.
3. HZS60 concrete mixing station adopts national admixture metering scale pneumatic conveying device to measure and convey admixtures, avoiding concrete quality accidents caused by failure of admixture system.
4. Equipped with touch screen, microcomputer, two sets of operating systems, manual, semi-automatic and automatic working modes. Ensure reliable operation of equipment.
5. It has the functions of proportion storage, automatic compensation of drop and water content of sand and gravel, alarm correction of under-weighing and over-weighing, online modification of formula, data saving, query and report printing, etc.
Concrete Batching Plants consists
*Aggregate weighing system
*conveying system,
*cement weighing system
*Water weighing system,
*Additive weighing system
*Mixer system,
*Dust removal system
*Pneumatic system,
*Computer control system
*Cement silo.
The YHZS60 mobile concrete mixing plant is mainly composed of the following parts:

Mixing System
- Mixing Host: Usually, a JS1000 twin-shaft compulsory mixer is adopted, which can quickly and uniformly mix fluid and dry hard concrete with good mixing quality and high efficiency.

Material Supply System
- Aggregate Batching and Measuring System: Located at the rear end of the whole plant, the upper part is the aggregate storage hopper, which is generally divided into 2 or 4 compartments. A heightening plate is set to increase the storage capacity. It adopts pneumatic sequential door opening operation, and the bottom is equipped with a walking rear axle and frame outriggers for working.
- Belt Conveyor Frame: It is a truss structural member connecting the main machine chassis and the aggregate batching frame. The belt conveyor frame is installed inside, integrating the main machine frame, the belt conveyor frame and the batching frame.
- Cement Silo and Screw Conveyor: The cement silo is used to store powdery materials such as cement, and the screw conveyor is responsible for conveying the cement from the cement silo to the mixing host. They are integral components both during operation and transportation and do not need to be disassembled.

Measuring System
- Cement Measuring System: Composed of a measuring bin, load cells, butterfly valves, etc., it can accurately measure the amount of cement used to ensure the accurate proportion of concrete.
- Water Measuring System: Mainly includes a water measuring tank, load cells, a water pump and pipelines, etc., which can precisely control the amount of water added.
- Admixture Measuring System: Includes an admixture measuring tank, pipelines and load cells, etc., which are used to accurately measure the amount of liquid admixtures.

Control System
- Control Room: Located at the bottom of the main machine chassis, it is equipped with a fully automatic control system for the mixing plant. The control mode of PLC + industrial computer is adopted. During the working state, it serves as the front support point of the whole plant, and it can be retracted and stored in the inner space of the support during transit.

Support and Walking System
- Main Machine Chassis: It is cantilever-shaped. There are towing pins for towing trucks and parking outriggers inside the chassis. The mixer, cement, water and admixture measuring scales are installed on the chassis, and inspection walkways, railings, etc. are attached around it.
Product Parameters

Model		YHZS25	YHZS35	YHZS50	YHZS60
Productivity (m3/h)		25	35	50	60
Discharger Capacity (L)		500	750	1000	1000
Discharger Height(m)		3.8	3.8	3.8	3.8
Mixed Aggregate		5x3	5x3	7x4	7x4
(m3*qty)
Aggregate	Measure	0-1500	0-2300	0-3000	0-3000
Balance	Range(kg)
	Measure	±2%	±2%	±2%	±2%
	Precision
Powder	Measure	0-400	0-600	0-800	0-800
Balance	Range(kg)
	Measure	±1%	±1%	±1%	±1%
	Precision
Water	Measure	0-200	0-300	0-400	0-400
Balance	Range(kg)
	Measure	±1%	±1%	±1%	±1%
	Precision
Additive	Measure	0-13	0-18	0-25	0-25
Balance	Range(kg)
	Measure	±1%	±1%	±1%	±1%
	Precision

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS120	HZS150	HZS180
Discharging Capacity (L)	500	750	1000	1000	1500	1500	2000	2500	3000
Charging Capacity(L)	800	1200	1600	1600	2400	2400	3200	4000	4800
Maximum Productivity(m³/h)	25	35	50	60	75	90	120	150	180
Charging Model	Skip Hopper	Skip Hopper	Skip Hopper	belt conveyor	Skip Hopper	belt conveyor	belt conveyor	belt conveyor	belt conveyor
Standard Discharging Height(m)	1.5~3.8	2~4.2	4.2	4.2	4.2	4.2	3.8~4.5	4.5	4.5
Number of Species of Aggregate	2~3	2~3	3~4	3~4	3~4	4	4	4	4
Maximum Aggregate Size(mm)	≤60mm	≤80mm	≤80mm	≤80mm	≤80mm	≤80mm	≤120mm	≤150mm	≤180mm
Cement/Powder Silo Capacity(set)	1×100T	2×100T	3×100T	3×100T	3×100T	3×100T	4×100T or 200T	4×200T	4×200T
Mixing Cycle Time(s)	72	60	60	60	60	60	60	30	30
Total Installed Capacity(kw)	60	78.5	111	145	110	198.06	210	230	288

NO.	Foundation-free 1000# Concrete Batching Plant Main Components
1	CONCRETE MIXING SYSTEM
2	AGGREGATE BATCHING MACHINE
3	INCLINED BELT CONVEYOR
4	AGGREGATE PRO-STORAGE BIN
5	CEMENT MEASURING SYSTEM
6	WATER MEASURING SYSTEM
7	ADDITIVE MEASURING SYSTEM
8	PNEUMATIC SYSTEM
9	FULL AUTOMATIC CONTROL SYSTEM
10	CONTROL ROOM
11	OTHER ACCESSORIES (CABLE & CABLE TRAY)
12	BOLTED CEMENT SILO (OPTIONAL)
13	SCREW CONVEYOR (OPTIONAL)

Item No.	Item Name		Models and Specifications	QTY
1	CONCRETE MIXING SYSTEM	Double-horizontal forced stirring host	JS1000	1set
		Gearbox	Planetary	2sets
		Motor	18.5KW	2sets
		Air unloading	100X250	2pcs
		Electric lubricating system	380V/1KW	1set
		High Strength Liner		1set
		Host frame structure	200# National standard channel steel	1set

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are the only and largest concrete mixing plant manufacturer in Jiangxi. The company has developed rapidly in recent years, and the new plant was completed and put into production in May 2023, with a total area of 20,000 square meters. We have a professional design team that can design various concrete mixing equipment for different customers. At the same time, we also have a strict quality inspection team. Excellent after-sales installation team makes our products exported to all over the world.
Packaging & Shipping

Certifications

Our Advantages
Ningdu Xingye Machinery Manufacturing Co., Ltd. was established in July 2013 and is located in Xinzhongsheng Industrial Park, Ningdu County, Ganzhou City, Jiangxi Province. It is a national-level specialized new technology enterprise integrating machinery manufacturing, R&D design, trade logistics and overseas sales. It is mainly a supplier of machinery and equipment in the fields of construction, mineral mining, municipal engineering, bridges and tunnels. The company has successively held more than 20 national invention patents and independent intellectual property rights, and has a leading industry position and innovation capabilities.
We adhere to the business philosophy of "taking technological innovation as the core, product quality as the cornerstone, and customer satisfaction as the purpose", constantly explore, strengthen research and development, actively expand service areas and customer needs, and create unlimited possibilities for the company's development. The products have won wide recognition in the market for their excellent performance and reliability.
For more than 10 years since its establishment, the company has been working hard in the field of machinery manufacturing and sales. The products have been exported to more than ten countries and regions around the world, and have established long-term and stable cooperative relations with well-known companies in the United States, Singapore, Malaysia, Indonesia and other countries, and established a good brand image and market reputation.
While the company continues to grow, it actively fulfills its social responsibilities and is committed to energy conservation, emission reduction and sustainable development. The company strictly abides by national and local environmental protection laws and regulations, and continues to contribute to environmental protection and sustainable development. At the same time, we are also actively involved in various public welfare undertakings, and contribute to public welfare undertakings in the fields of society, community, environmental protection, and humanities.
The company currently has more than 100 employees. We insist on being people-oriented and attach importance to the growth and development of employees. The company has successively equipped employee dormitories, canteens, living and leisure areas, sports and fitness areas and other living facilities to provide employees with a good working environment; and customized a complete training and promotion mechanism for the entire process of the 2+3 model to enhance employees' sense of belonging, sense of accomplishment and happiness.
Looking to the future, we will continue to deepen our efforts in the fields of machinery manufacturing, R&D design, trade logistics, overseas sales, etc., increase R&D investment, and promote technological innovation and product upgrades. We will actively expand domestic and foreign markets, explore customer needs through precise market positioning and marketing strategies, and establish and enhance brand awareness at home and abroad. In the future competition, we will continue to lead the industry with outstanding technical strength and product quality.

FAQ
1. Are you a manufacturer, trading company or a third party?
We are a concrete batching plant manufacturer 15 years of manufacturing experience
2.Can the machine be customized as our need, such as put on our logo?
Our faithful is Get The Right Equipment for the Job ,Surely our machine can be customized as your need, Put on your logo is also available. 3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It's always my pleasure, hotel booking service is available.
4. As the shipping period will take long time, how can you make sure the machine won't be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

5.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

6. How can i get to your factory?
We can pick you up at the airport.
7. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
9. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be
charged by you.

---
